The Console Table Build

My honey-do list usually starts out the same. My wife will ask if I can make something for her and then asks how much it will cost in wood. I told her it would probably run around $60 so we headed to Home Depot and bought some white pine boards.

I bought a few 1″ x 10″ x 6′ to use for the legs. One 1″ x 10″ cut in half and ripped into 2 1/2″ wide segments would yield me two legs. After I laminated three of the boards, I sized them to 2 1/4″ square and then turned them on the lathe. I looked at the picture she gave me but I turned the leg from feel of what I thought it looked liked. When I was done, we both decided the bottom part of the leg looked too “boxy” so I decided to turn another leg.

The second leg turned out better than the first. When I threw a picture of both legs onto instagram, one of my followers said that he liked the bottom of the leg on right but liked the top of the leg on the left. I agreed so I refined the leg so the ball of the leg looked more like a ball and not a fat lazy bead.

After refining the leg, I made five more freehand. I’m by no means a master wood turner. In fact, my wood turning is passable at best. The only lesson I’ve ever taken on wood turning is watching The Woodwright’s Shop over the years. I take a ruler, a parting tool, and some calipers and try to make the sixth one to look like the first. In the end, I think the legs came out pretty good.

My wife wanted table to be fourteen inches wide by five feet long so I laid the legs on the top and decided the dimensions of each part of the frame.

After cutting out all the parts of the frame, I attached them to the legs with pocket hole joinery. This is a simple table made from construction grade material so I wasn’t in the mood to start cutting a bunch of mortises for mortise and tenon joinery. Sorry.

I sized and glued the bottom shelf to the lower frame. Ideally this would be best suited for plywood due to the expansion and contraction of the wood however, after studying the original picture, this is how the table my wife wanted was built so I went ahead and made it the same way. Eventually there will be a nice crack in the middle of the shelf, but that will just add to the farmhouse look.

I made the drawers as simple as possible as well. I planed down some of the pine to 1/2″ thick and made the sides with rabbeted joinery and a 1/4″ plywood bottom. I then simply glued and nailed a drawer front to the box.

In the end, this is how the table came out. Not bad for a weekend build. My wife will finish the table with some sort of weathered look stain. I’m happy with it and it’s one less thing off of my honey-do list.

Here’s the table completed with a stain Anita put on. It’s for sale at a design show. It originally wasn’t meant to be for sale, but we had such a good show, we needed more inventory to sell.

A Quick Harvest Table

My wife, Anita, wanted me to make another farmhouse table for her. She sold the last one I made several months ago and missed how it looked in her booth. So, I went to Home Depot and bought three 2×12’s and two 4×4’s.


Two of the 2 x 12’s I bought, I planed down to 1″ with my surface planer. It did a fine job, but I had three garbage cans full of shavings that I had to burn in my fire pit in order to get rid of.


I ripped the last 2×12 in half on my band saw, then ran kerfs down each side on my table saw 7/8″ wide so I could use them for the frame of the table. Ripping them down to 7/8″ would allow me to plane one of the pieces to 3/4″. Then I took the 1/2″ off cuts and glued them together to create a 1″ thick stock to mill down to 3/4″ back at the surface planer.


In the past, I ripped kerfs down the sides of the board and then take it over to the band saw to finish up the ripping. However, this board gave me some real trouble as it kept binding up the band saw blade. Frustrated, I tried everything, even giving it a go with my rip saw, with no luck.


I was so disgusted I threw up a picture of my struggles on Instagram and then a follower of mine gave me the idea of finishing the ripping with a sawzall. Curious, I gave it a shot and sure enough, it worked perfectly only taking me ten minutes. Social media is awesome!


With the ripping done, I was ready to get back to business milling and gluing up the off cuts so I could still use them to build the frame of the harvest table.


With the wood gluing, I turned my attention to the legs. Taking the 4×4’s I cut them to 30″ and turned a leg that my wife was pleased with.


I then repeated the steps of the first leg to the next three. I ended up with four legs that were identical enough to one another.


I wanted to use mortise and tenon joinery to attach the frame to the legs. so I set my mortising gauge to 3/8″ wide, the same width of my mortise chisel.


I ran my mortising gauge down the side of the leg where I wanted a mortise and used the chisel to chop out a shallow area.


Next I used a 3/8″ forstner bit and drilled down the depth of the mortise. Doing the mortise this way allowed me to not have my drill bit sway outside the mortised area.


I then finished up the mortise back with my chisel making the ends of the mortise nice and square. This is an unconventional way to make a mortise,  but it allowed me to remove a lot of the waste much quicker than with the chisel alone.


Test fitting the joint, I was pleased with the results. It took me less than an hour to cut all eight mortises.


Using one of my beading planes, I planed a 3/8″ bead down the bottom of the frame boards. Cutting a bead on a seven-foot long board takes a bit of patience.


Using pocket holes, I glued and screwed the frame to the legs and top. My wife wanted this table to be quick and easy which it was.


I flipped the table over and was happy with my work. The top is just two boards lying next to each other, not even being glued together.


My wife stained the wood with steel wool and vinegar solution and then applied a couple of coats of milk paint to give the table an old world look.


Here’s the table in her booth with some of her antiques on top. Quick and easy.


Whiskey Barrel Coffee Table

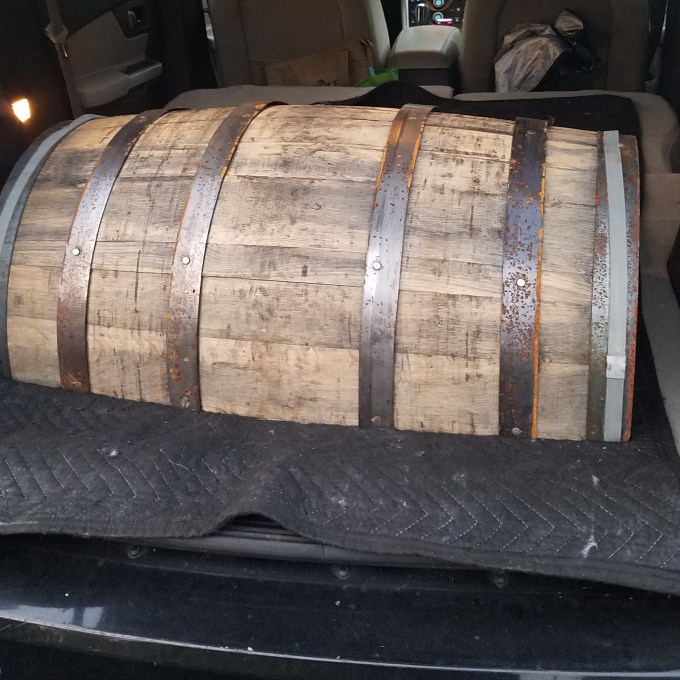

My cousin had been asking me to make a whiskey barrel coffee table for her for over a year. I put it off for months because I didn’t know where to buy a whiskey or wine barrel until I ran across a guy on Craigslist who sells them out of his house. Even better, he sells half barrels which was perfect for me as I really didn’t feel like cutting a barrel in half.


When I got the barrel home, I let it acclimate in my shop for a few weeks. As the barrel dried out, the staves started to fall apart, so I clamped them together using band clamps until I was able to screw fasteners into each stave to hold it in place. While the band clamps were holding the whole barrel together, I laid it on top of white oak boards I bought at a sawmill to see how big I wanted to make the top of the coffee table.

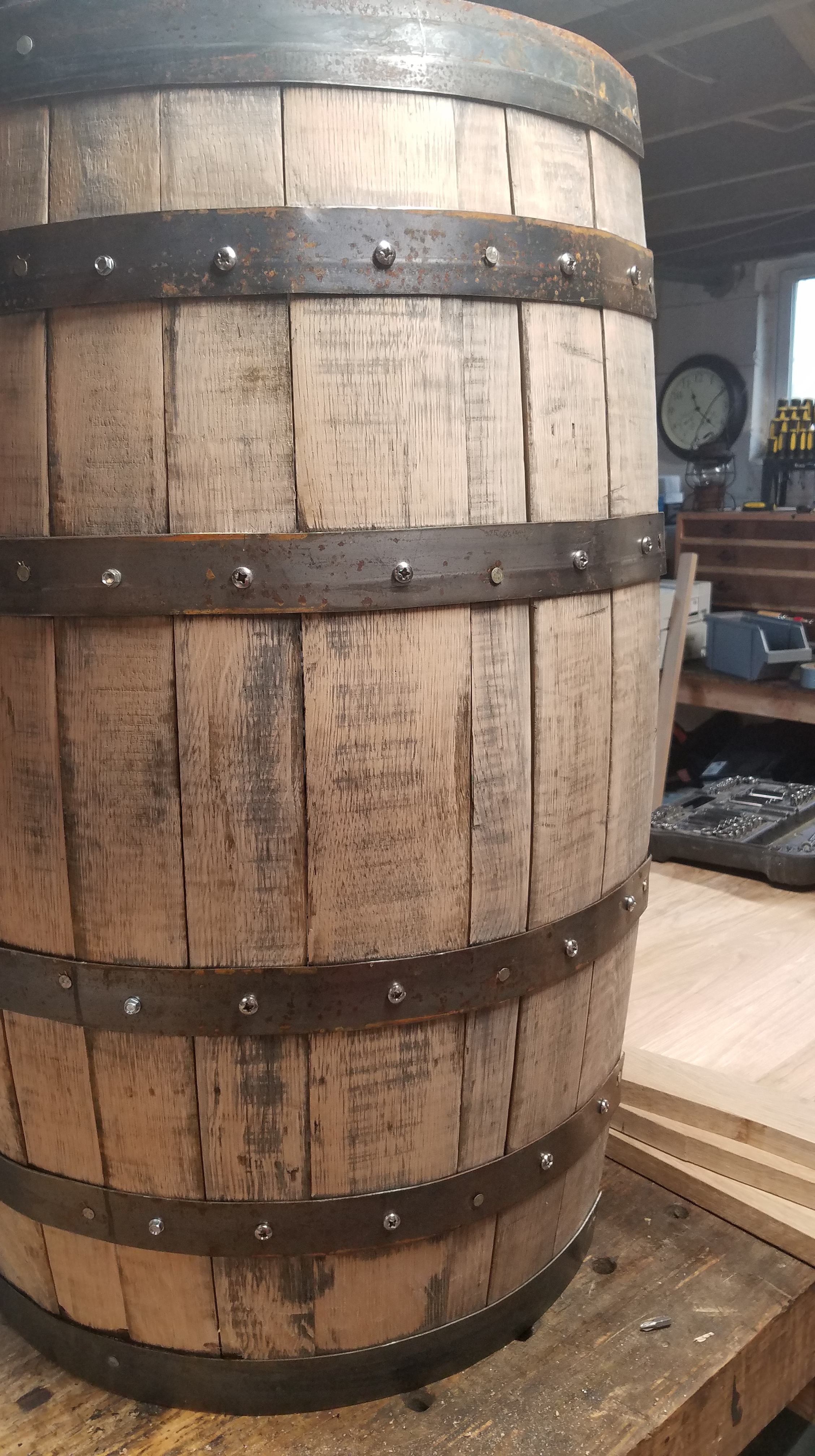

To keep the barrel together, I screwed hex bolts through the bands into the wood to hold each stave in place. I also leveled the top of the barrel by sanding the edges straight with my belt sander. The barrel came with a stand for it to be used as an outside planter which was helpful in holding it in place while I worked on it.


My wife didn’t like the look of the hex bolts I used so, I replaced them with #14 stainless steel pan head screws. She was right, the pan head screws look much nicer.


I designed the shape of the legs by using the stand that came with the barrel to shape the curves. Each leg had an angle to the top that fit the angle of the barrel as it laid flat. I chamfered the edges of the feet to mimic the chamfers on the top and bottom of the barrel.

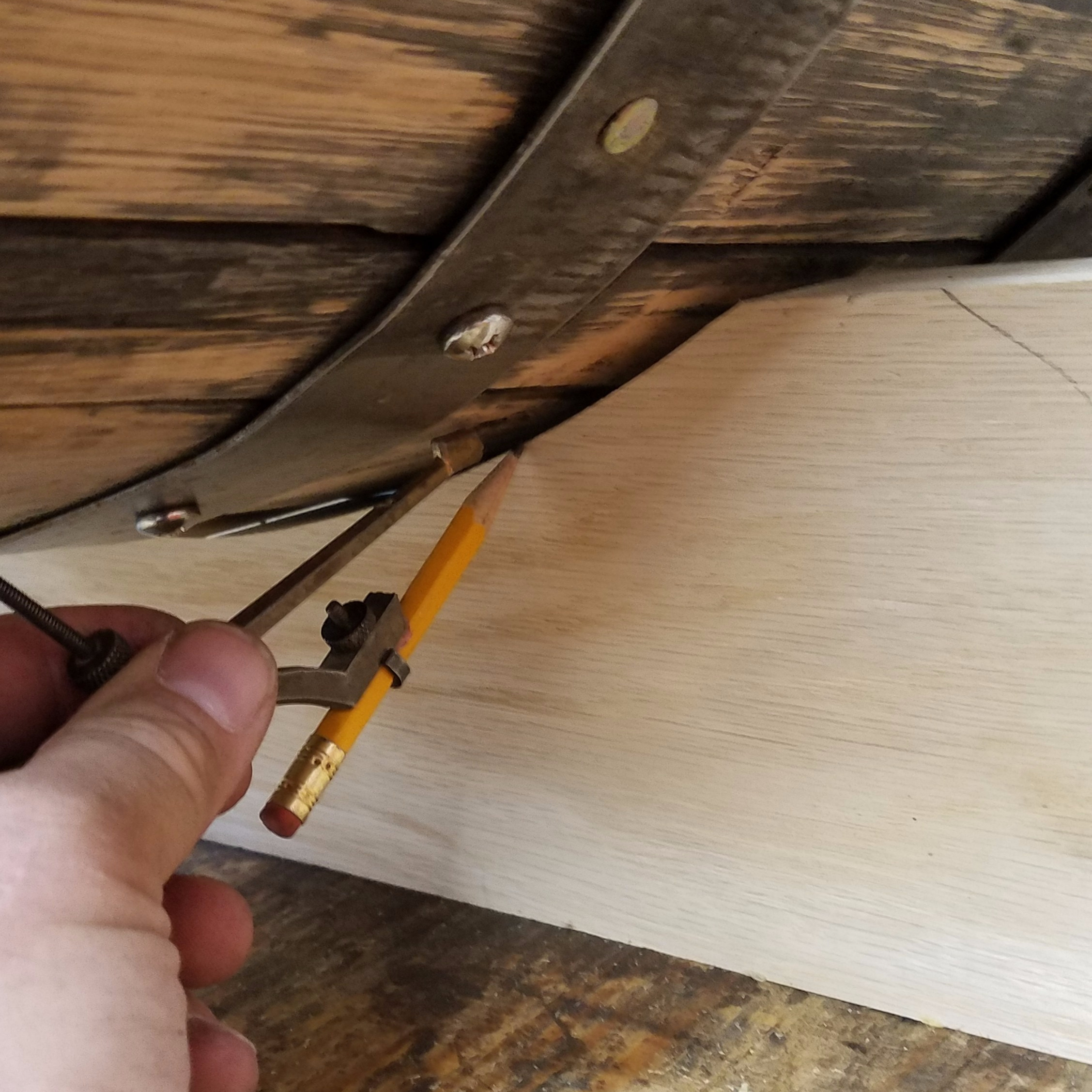

You can see how I used the compass to figure out the gap that I needed to shave off the other side of the leg in order for the barrel to fit tight.


Once I was happy with the legs, I focused on the frame of the barrel. I traced the shape of the barrel onto a piece of wood and cut it out on my band saw. I then trimmed the end of the sides 90 degrees to the edge and double-stick taped it to the other side. This allowed me to clamp the whole frame while it was screwed and glued together.


After carefully measuring all the pieces, I test fitted the frame together to make sure it would fit nicely on top of the barrel.

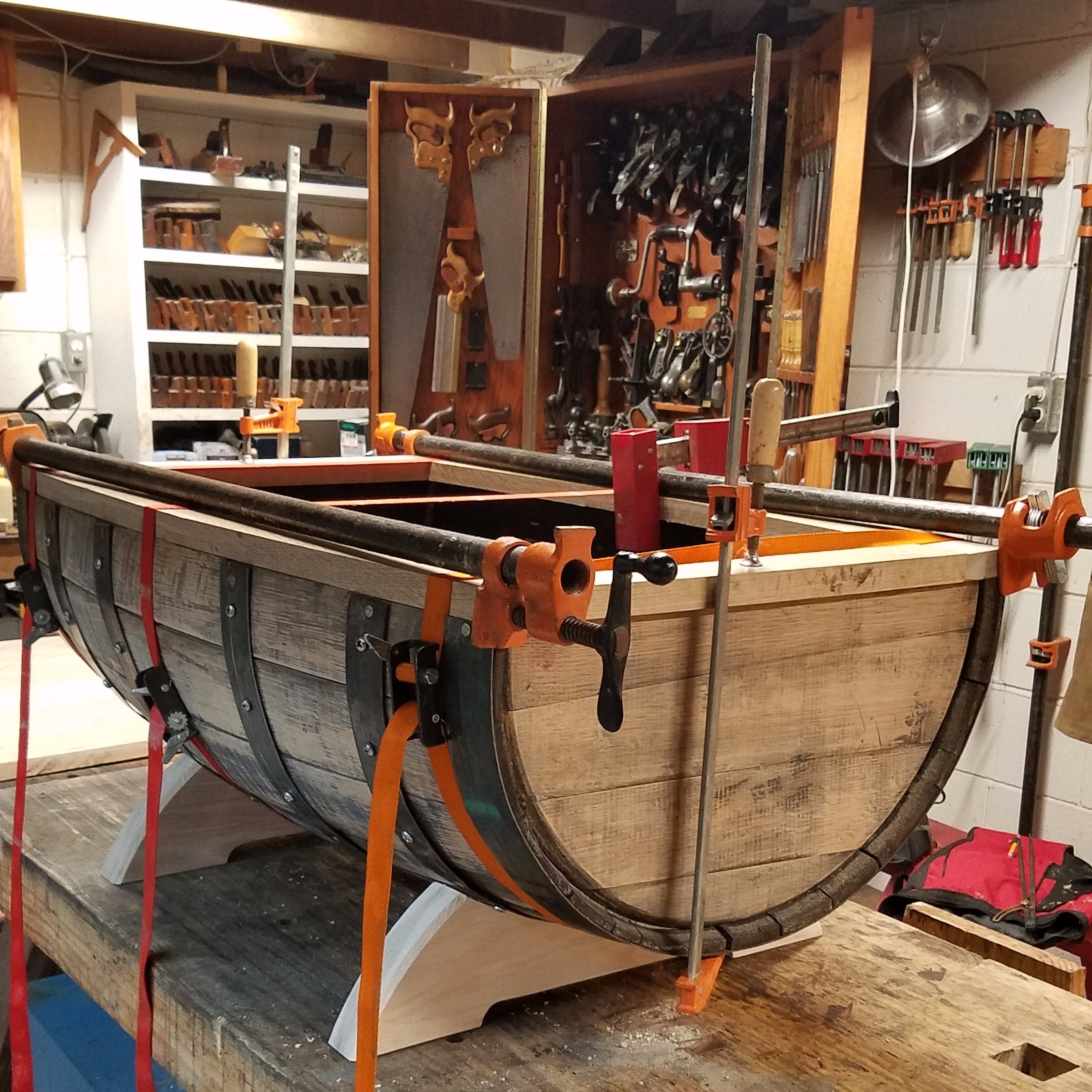

I was more aggressive with the clamps when it came time for the actual glue up. I let this set in place for 24 hours.


As the base was setting up, I turned my attention to the top. I glued up several white oak boards together and flattened them with my hand planes because the panel was too wide to fit through planer.


I wanted the top to have a bread board edge so I plowed a groove into the ends that was the same width as my 3/8″ mortising chisel. I would later chop three mortises into the groove to fit tenons I would make.


To make the tenons, I used both power and hand tools to get the job done. I routed most of the material away with my plunge router, then finalized the fit with my Stanley No 10 1/2 rabbet plane.


I made sure the panel would fit into to the groove before I cut the tenons

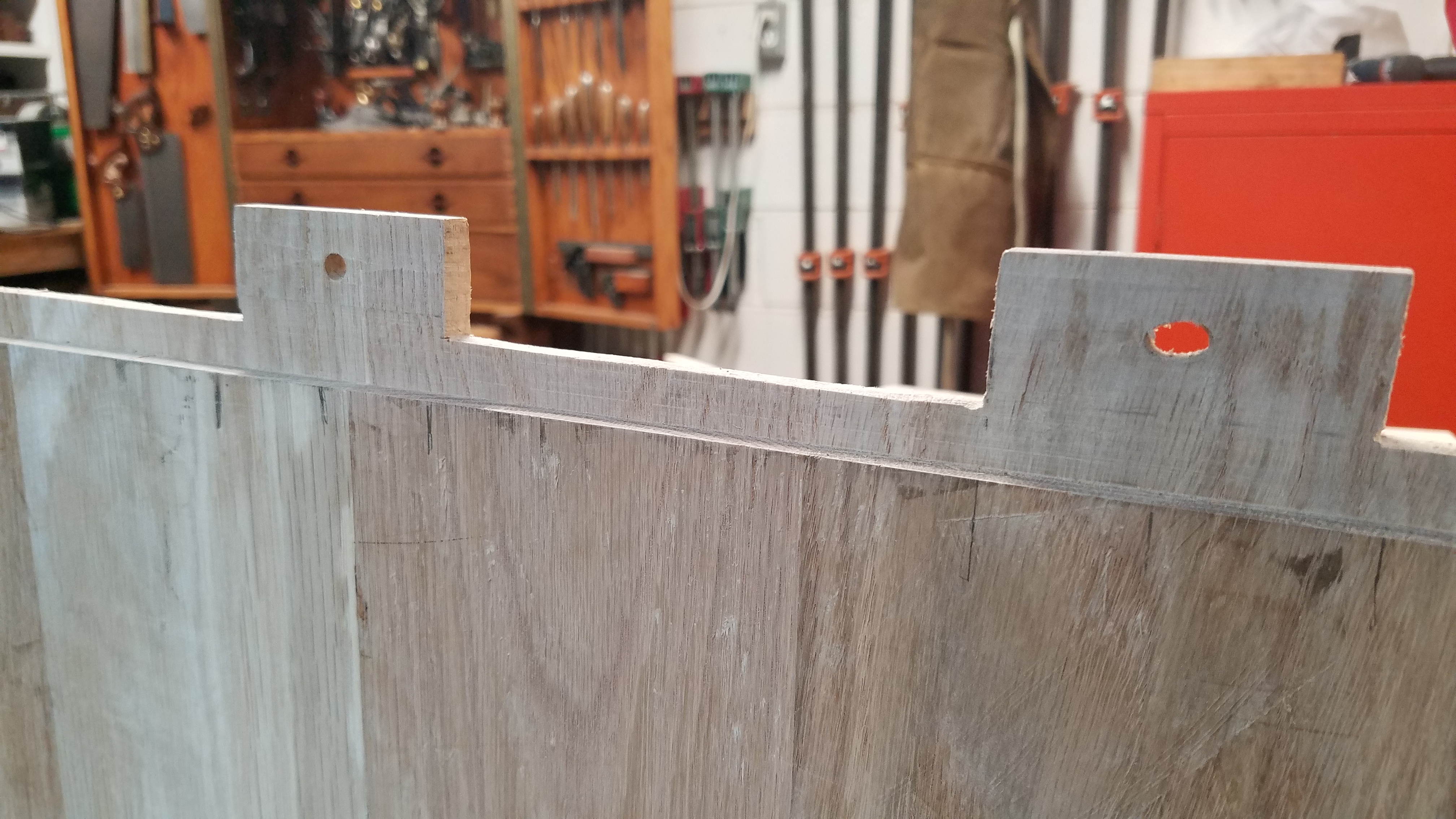

Cutting out the tenons, I drilled holes through the middle for pins. The middle hole I left round while the tenons on the outside I elongated for the expansion and contraction of the wood.


Once the joints fit well, I drove pins into the holes and added a dab of glue so the pins wouldn’t fall out.


I shaped the sides of the top to match the curve of the barrel and lightly rounded over the sides with my hollow molding plane.


The final shape of the coffee table top came out nicely. Now I needed to find away to attach it to the frame.


After days of pondering, I decided to attach hinges to the top so that the lid could open and close. The inside of the barrel was charred from the brewing of the whiskey so, it’s not very useful as it will leave ash on your finger if you touch it, but I thought it was cool enough to show off. I clamped my level to the middle of the frame to determine where in proximity the hinges would need to be installed.


Because the lid overhangs the side by an inch, the barrel of the hinges lay underneath the top when closed. I had to rout out a recess on the underneath of the lid so the top could properly close.


Even with all my calculating, I ran into a problem. The top would hit the middle of the barrel when I tried opening it. I had to route a recess in the middle of the lid so that there would be enough room for the lid to open. It took several hours of trial and error to make it work, but I finally made it work.


Once everything worked, I sanded the entire coffee table to 220 grit sand paper and applied a weathered wood enhancer to blend the old barrel to the new white oak. This turned the coffee table a bit purplish gray.


Next, I stained it Minwax Espresso stain and applied three coats of water based polyurethane for a protective finish. I think the coffee table turned out really nice. Luckily, my work has me going to Detroit next week, so I can deliver the coffee table to my cousin.
