The Console Table Build

My honey-do list usually starts out the same. My wife will ask if I can make something for her and then asks how much it will cost in wood. I told her it would probably run around $60 so we headed to Home Depot and bought some white pine boards.

I bought a few 1″ x 10″ x 6′ to use for the legs. One 1″ x 10″ cut in half and ripped into 2 1/2″ wide segments would yield me two legs. After I laminated three of the boards, I sized them to 2 1/4″ square and then turned them on the lathe. I looked at the picture she gave me but I turned the leg from feel of what I thought it looked liked. When I was done, we both decided the bottom part of the leg looked too “boxy” so I decided to turn another leg.

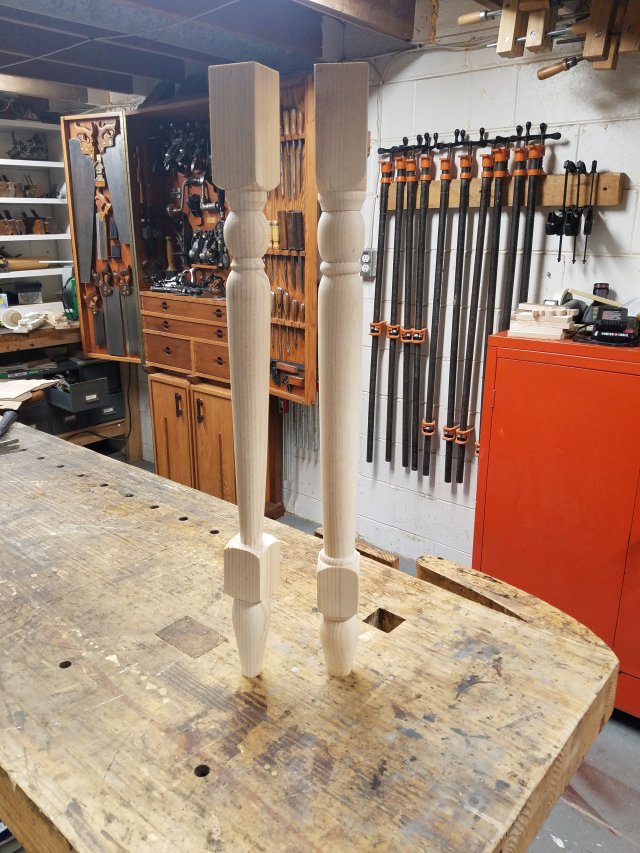

The second leg turned out better than the first. When I threw a picture of both legs onto instagram, one of my followers said that he liked the bottom of the leg on right but liked the top of the leg on the left. I agreed so I refined the leg so the ball of the leg looked more like a ball and not a fat lazy bead.

After refining the leg, I made five more freehand. I’m by no means a master wood turner. In fact, my wood turning is passable at best. The only lesson I’ve ever taken on wood turning is watching The Woodwright’s Shop over the years. I take a ruler, a parting tool, and some calipers and try to make the sixth one to look like the first. In the end, I think the legs came out pretty good.

My wife wanted table to be fourteen inches wide by five feet long so I laid the legs on the top and decided the dimensions of each part of the frame.

After cutting out all the parts of the frame, I attached them to the legs with pocket hole joinery. This is a simple table made from construction grade material so I wasn’t in the mood to start cutting a bunch of mortises for mortise and tenon joinery. Sorry.

I sized and glued the bottom shelf to the lower frame. Ideally this would be best suited for plywood due to the expansion and contraction of the wood however, after studying the original picture, this is how the table my wife wanted was built so I went ahead and made it the same way. Eventually there will be a nice crack in the middle of the shelf, but that will just add to the farmhouse look.

I made the drawers as simple as possible as well. I planed down some of the pine to 1/2″ thick and made the sides with rabbeted joinery and a 1/4″ plywood bottom. I then simply glued and nailed a drawer front to the box.

In the end, this is how the table came out. Not bad for a weekend build. My wife will finish the table with some sort of weathered look stain. I’m happy with it and it’s one less thing off of my honey-do list.

A Quick Harvest Table

My wife, Anita, wanted me to make another farmhouse table for her. She sold the last one I made several months ago and missed how it looked in her booth. So, I went to Home Depot and bought three 2×12’s and two 4×4’s.


Two of the 2 x 12’s I bought, I planed down to 1″ with my surface planer. It did a fine job, but I had three garbage cans full of shavings that I had to burn in my fire pit in order to get rid of.

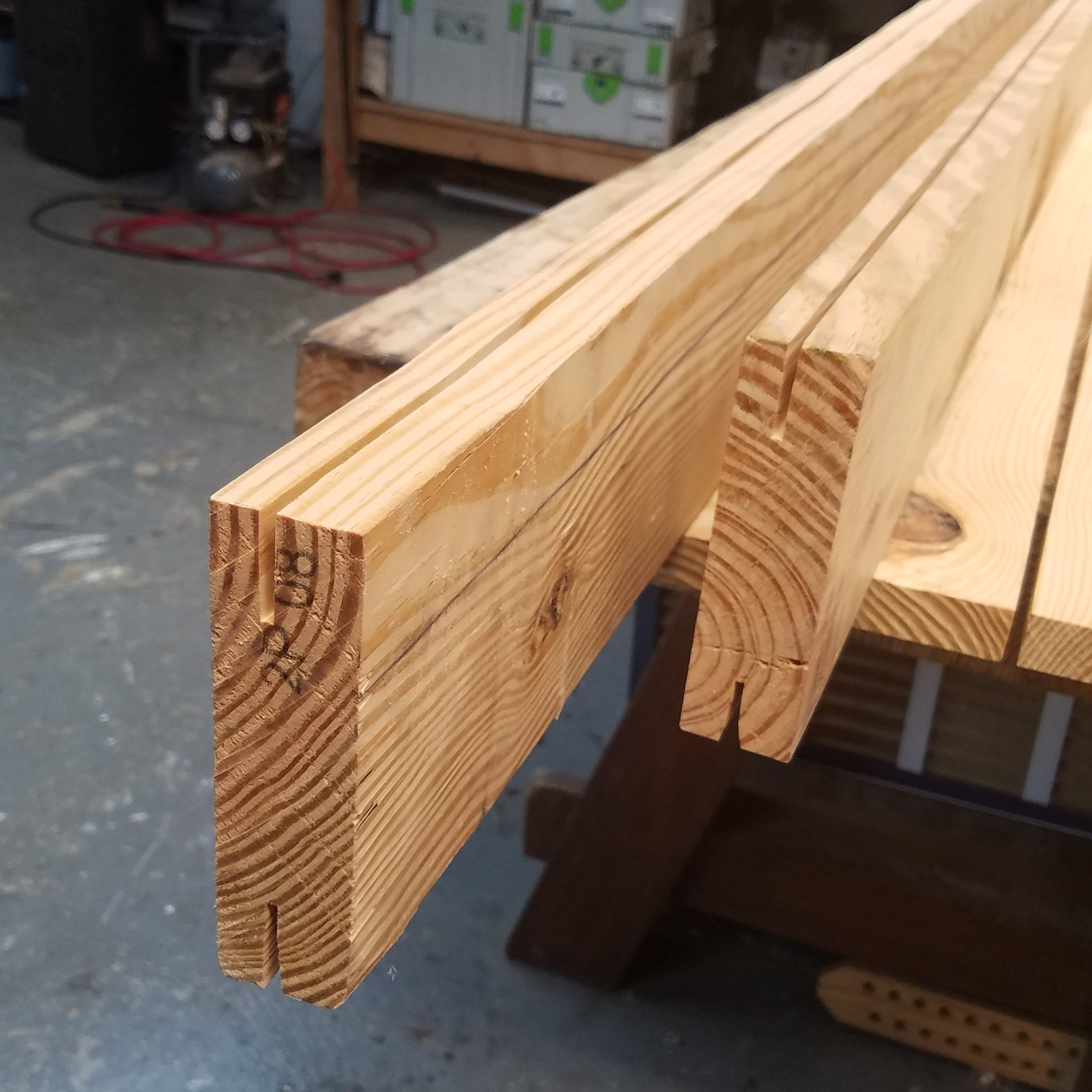

I ripped the last 2×12 in half on my band saw, then ran kerfs down each side on my table saw 7/8″ wide so I could use them for the frame of the table. Ripping them down to 7/8″ would allow me to plane one of the pieces to 3/4″. Then I took the 1/2″ off cuts and glued them together to create a 1″ thick stock to mill down to 3/4″ back at the surface planer.


In the past, I ripped kerfs down the sides of the board and then take it over to the band saw to finish up the ripping. However, this board gave me some real trouble as it kept binding up the band saw blade. Frustrated, I tried everything, even giving it a go with my rip saw, with no luck.


I was so disgusted I threw up a picture of my struggles on Instagram and then a follower of mine gave me the idea of finishing the ripping with a sawzall. Curious, I gave it a shot and sure enough, it worked perfectly only taking me ten minutes. Social media is awesome!


With the ripping done, I was ready to get back to business milling and gluing up the off cuts so I could still use them to build the frame of the harvest table.


With the wood gluing, I turned my attention to the legs. Taking the 4×4’s I cut them to 30″ and turned a leg that my wife was pleased with.


I then repeated the steps of the first leg to the next three. I ended up with four legs that were identical enough to one another.


I wanted to use mortise and tenon joinery to attach the frame to the legs. so I set my mortising gauge to 3/8″ wide, the same width of my mortise chisel.

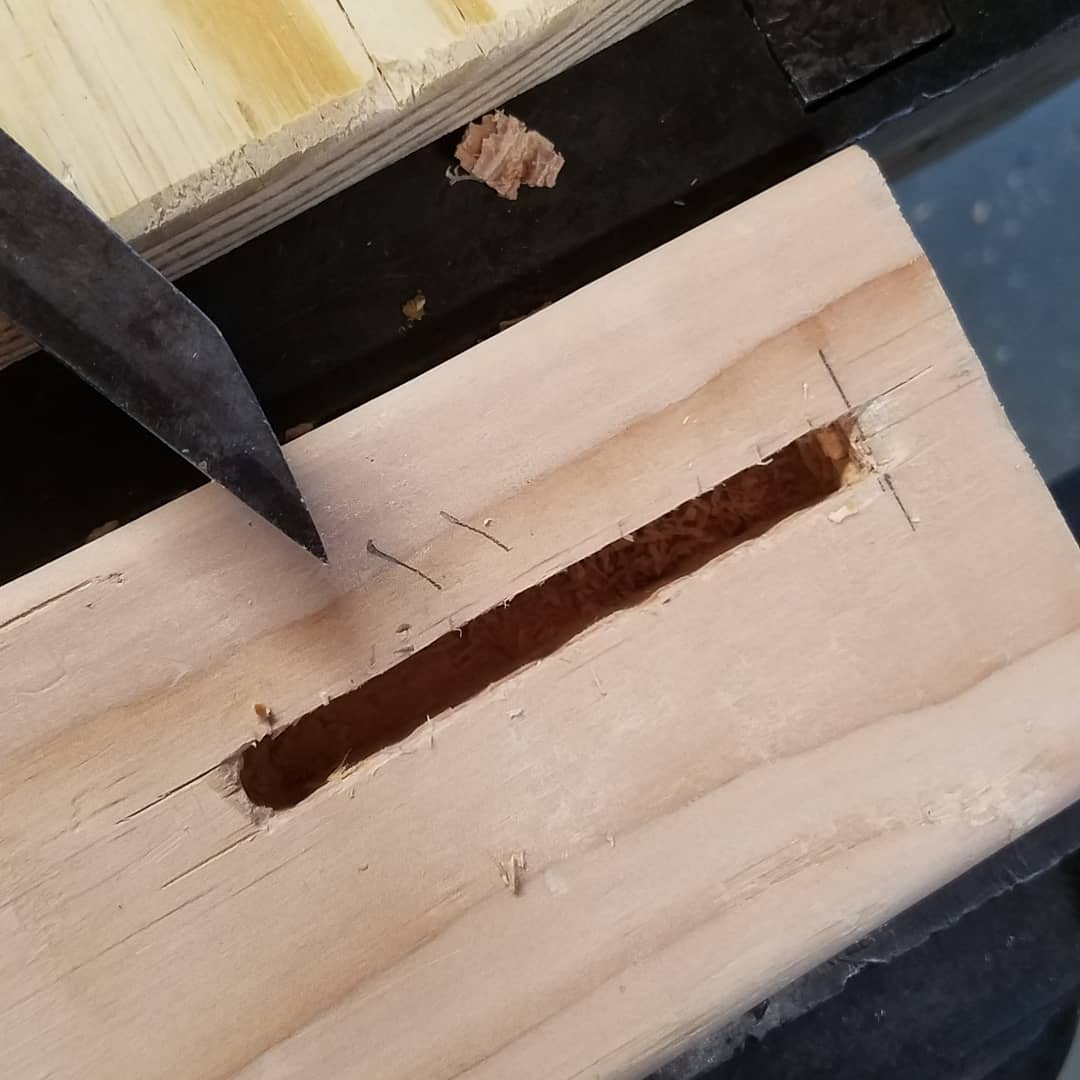

I ran my mortising gauge down the side of the leg where I wanted a mortise and used the chisel to chop out a shallow area.

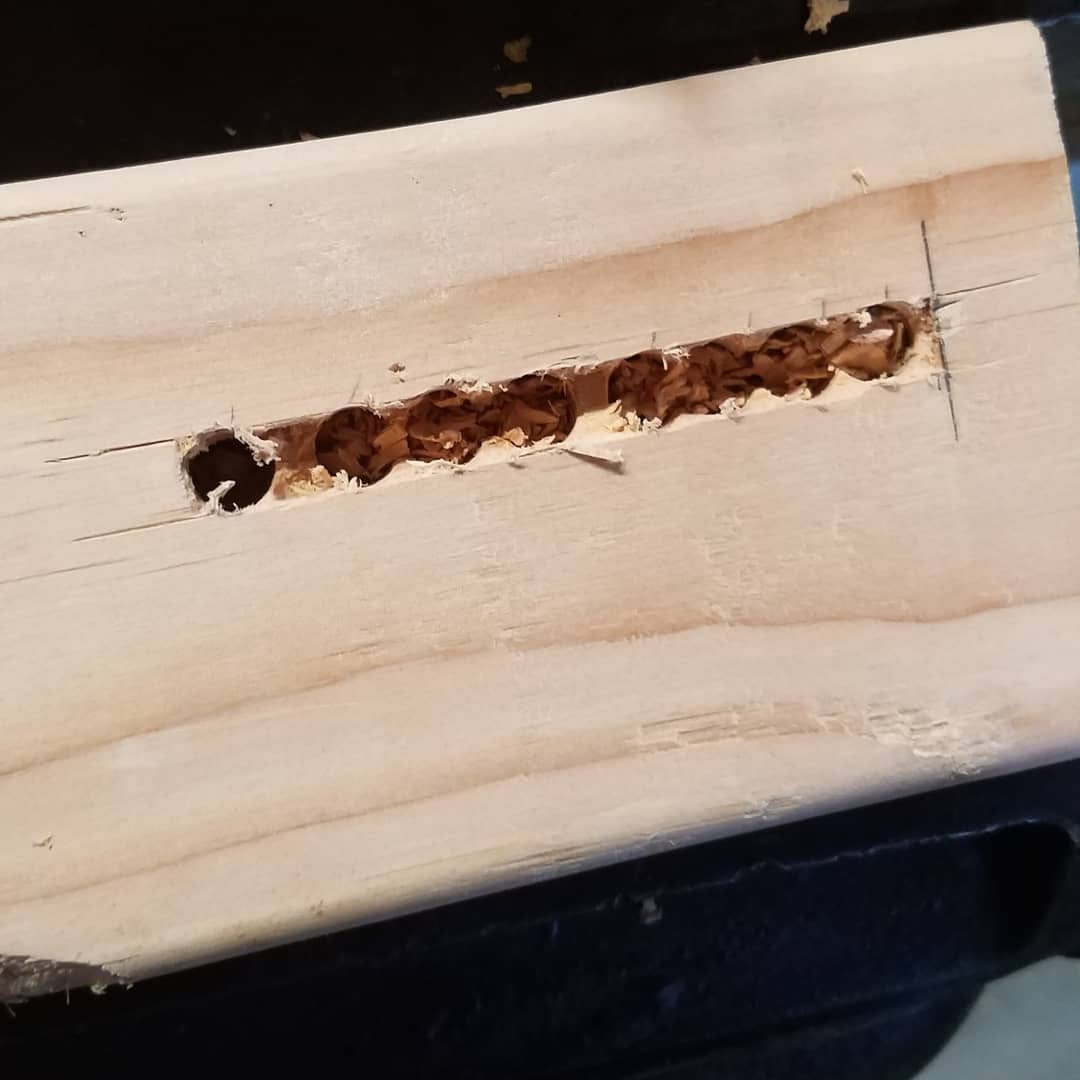

Next I used a 3/8″ forstner bit and drilled down the depth of the mortise. Doing the mortise this way allowed me to not have my drill bit sway outside the mortised area.


I then finished up the mortise back with my chisel making the ends of the mortise nice and square. This is an unconventional way to make a mortise,  but it allowed me to remove a lot of the waste much quicker than with the chisel alone.


Test fitting the joint, I was pleased with the results. It took me less than an hour to cut all eight mortises.


Using one of my beading planes, I planed a 3/8″ bead down the bottom of the frame boards. Cutting a bead on a seven-foot long board takes a bit of patience.


Using pocket holes, I glued and screwed the frame to the legs and top. My wife wanted this table to be quick and easy which it was.

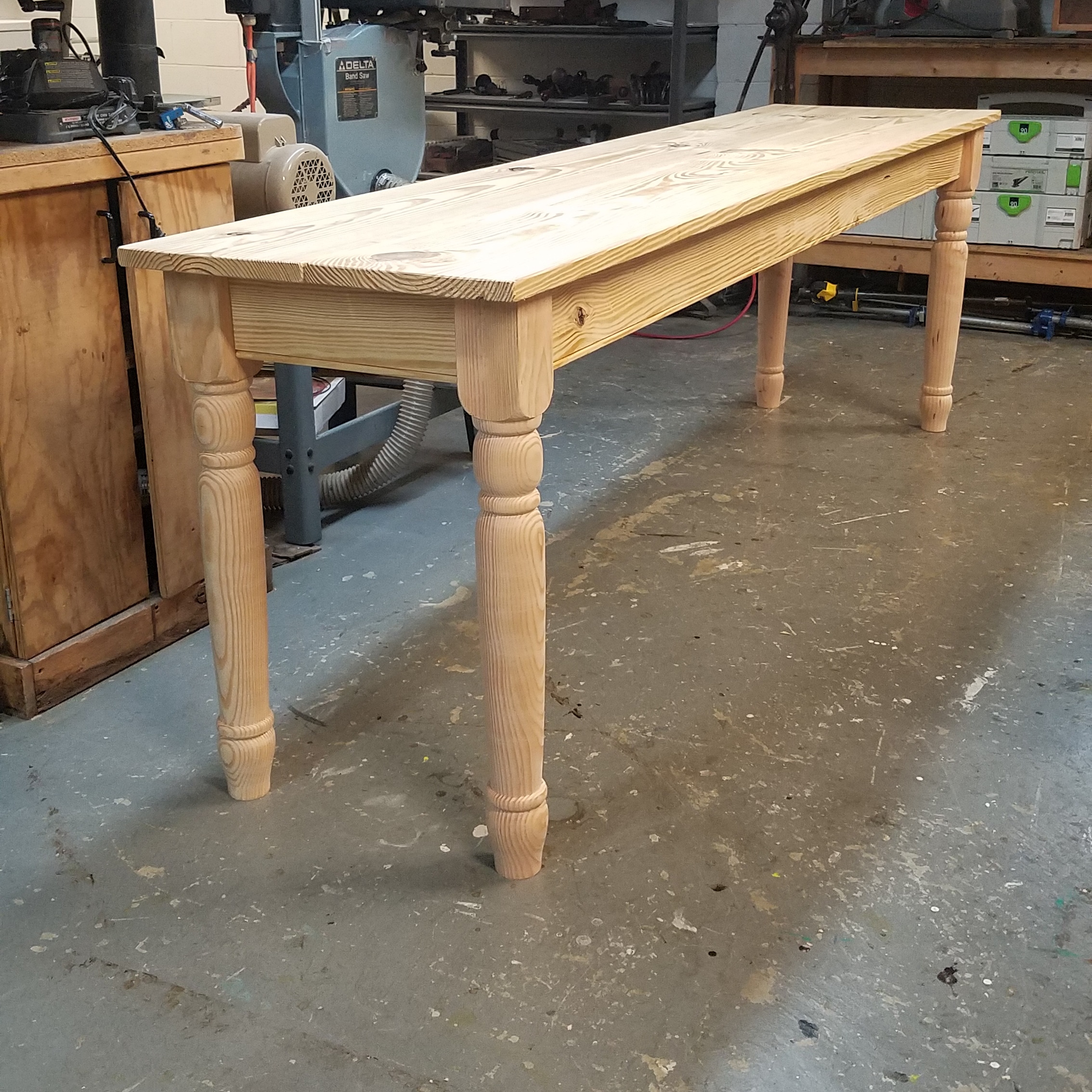

I flipped the table over and was happy with my work. The top is just two boards lying next to each other, not even being glued together.


My wife stained the wood with steel wool and vinegar solution and then applied a couple of coats of milk paint to give the table an old world look.

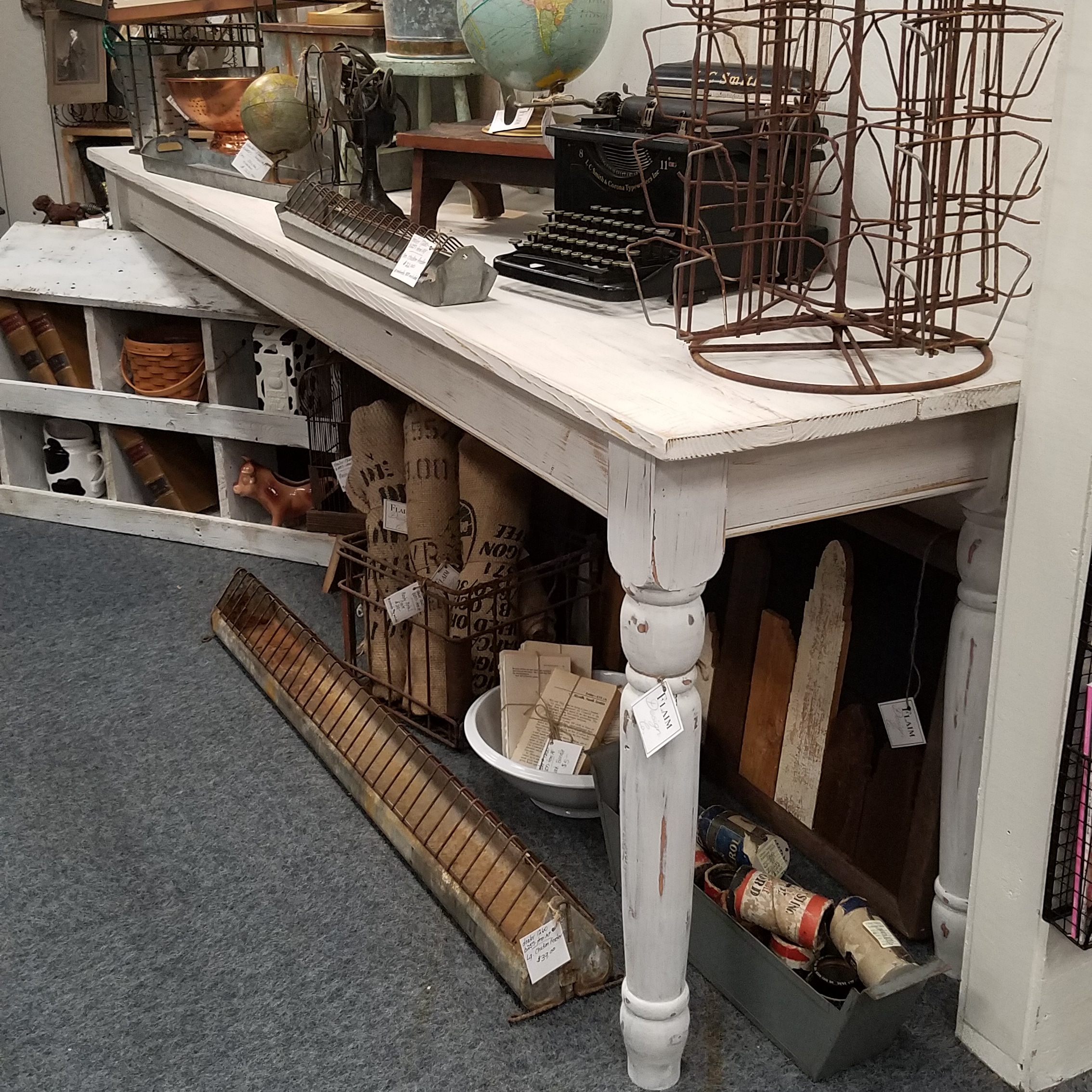

Here’s the table in her booth with some of her antiques on top. Quick and easy.


Repairing the Foot of a Walnut Table

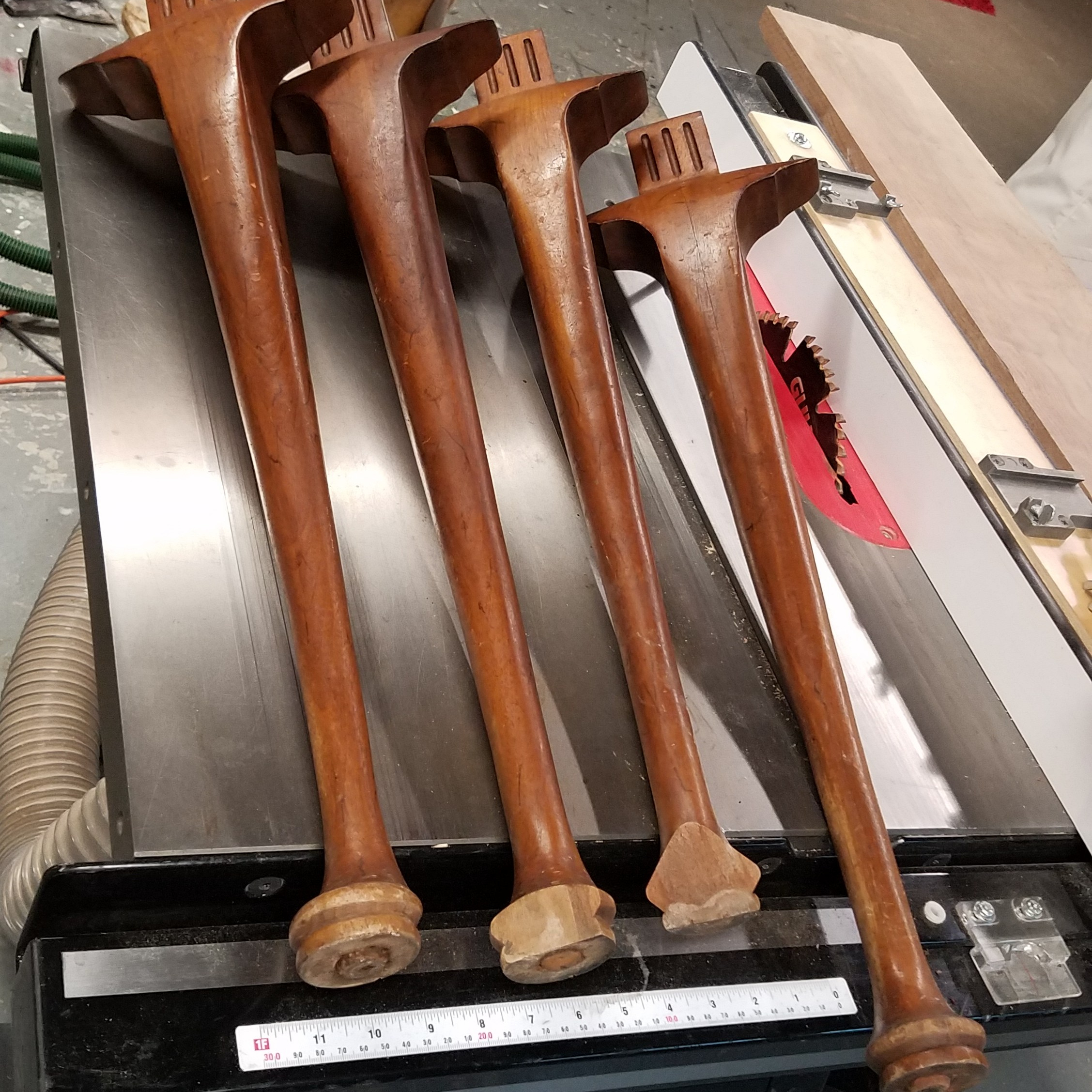

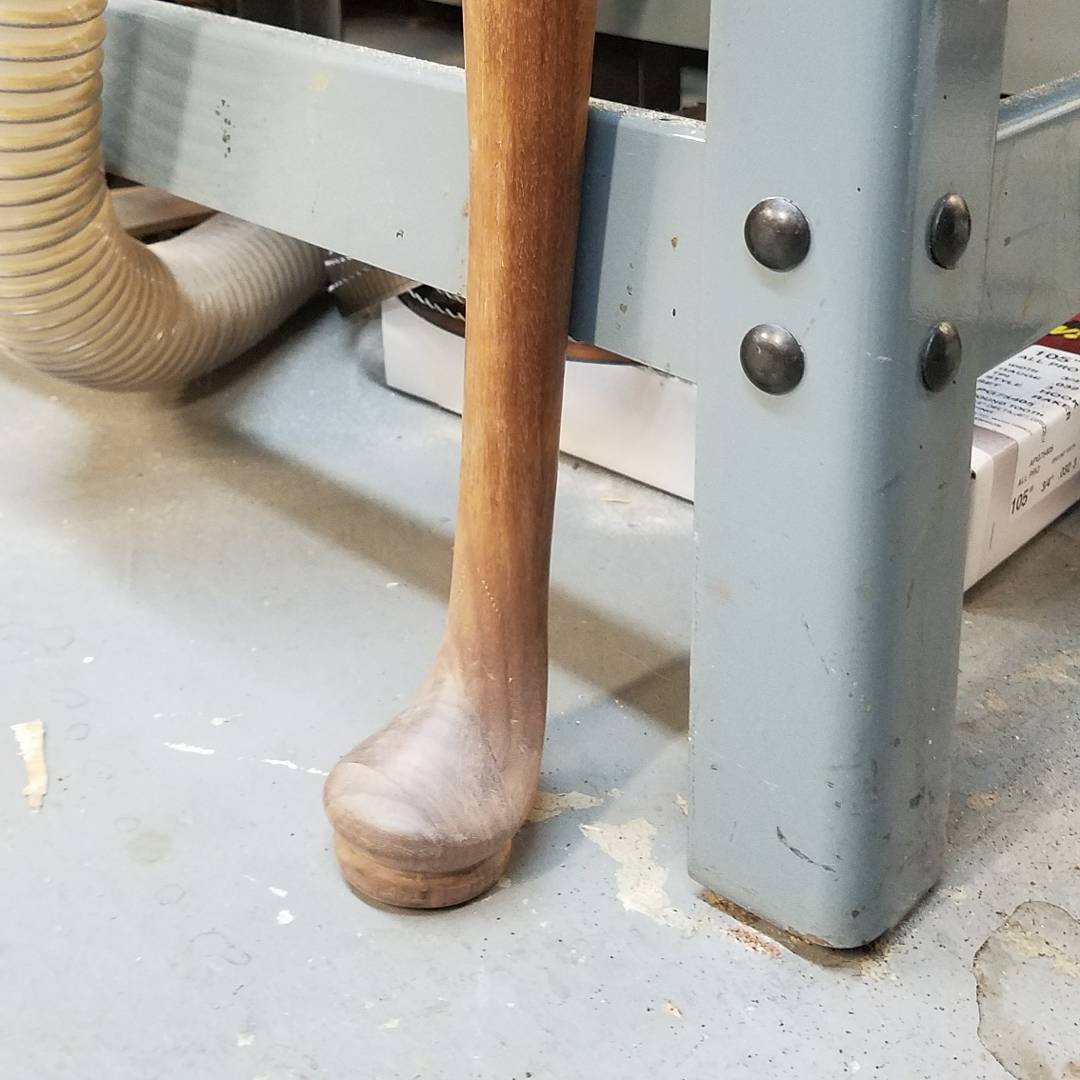

A few weeks ago, my wife and I, were visiting thrift shops in Cincinnati when we ran across a round walnut table for $20.00 at Goodwill. There was nothing special about it. It had a dull flat finish and was missing the extension wings that go in the middle. It even had two feet that were broken. Anita asked me if I could remake them and I told her I could, so we took it home.

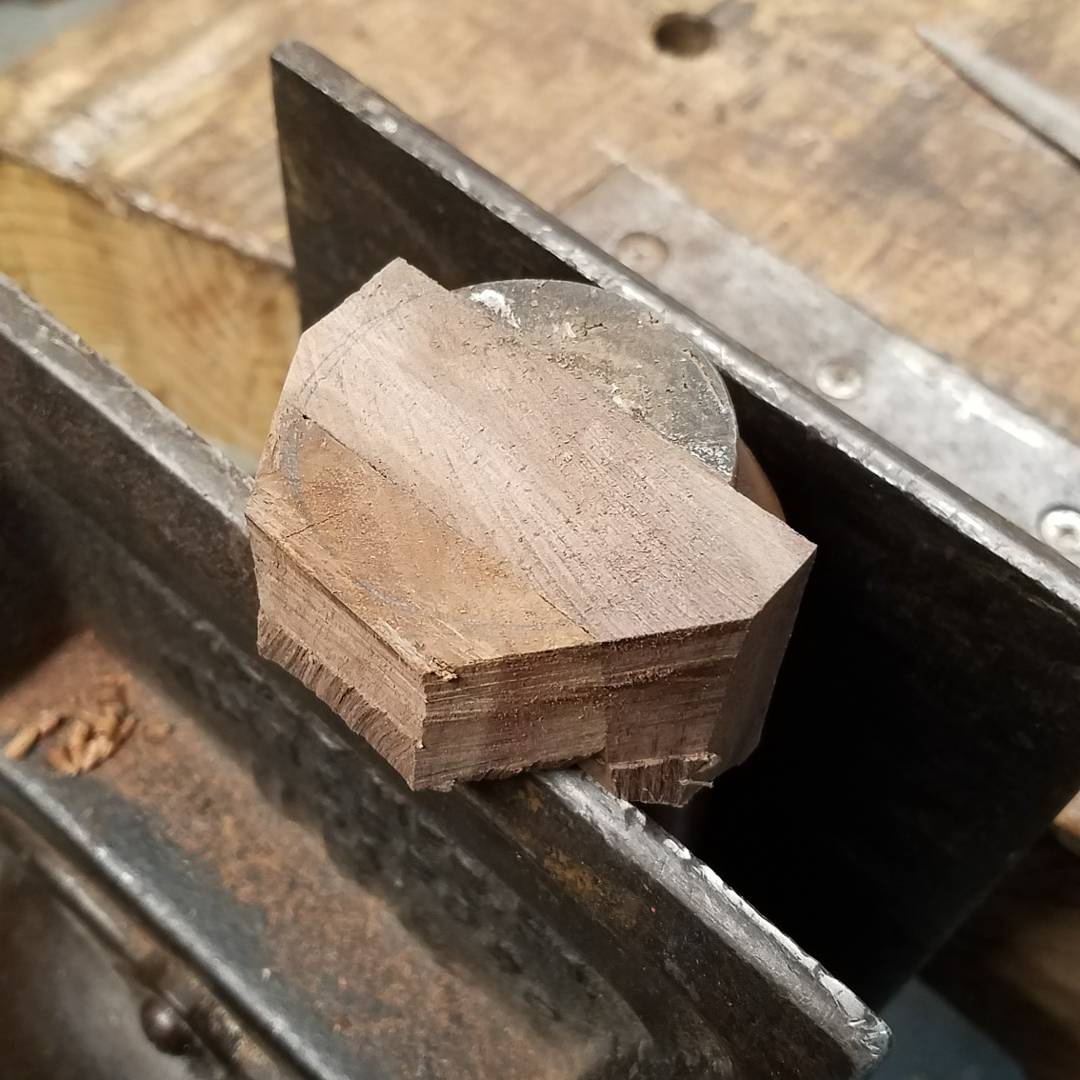

In order to fix the feet, I grabbed some scrap walnut and glued pieces to them to re-sculpt the feet.


Once the glue dried, I cut the arch of the foot with my band saw, then I sawed off the sides with a hand saw.

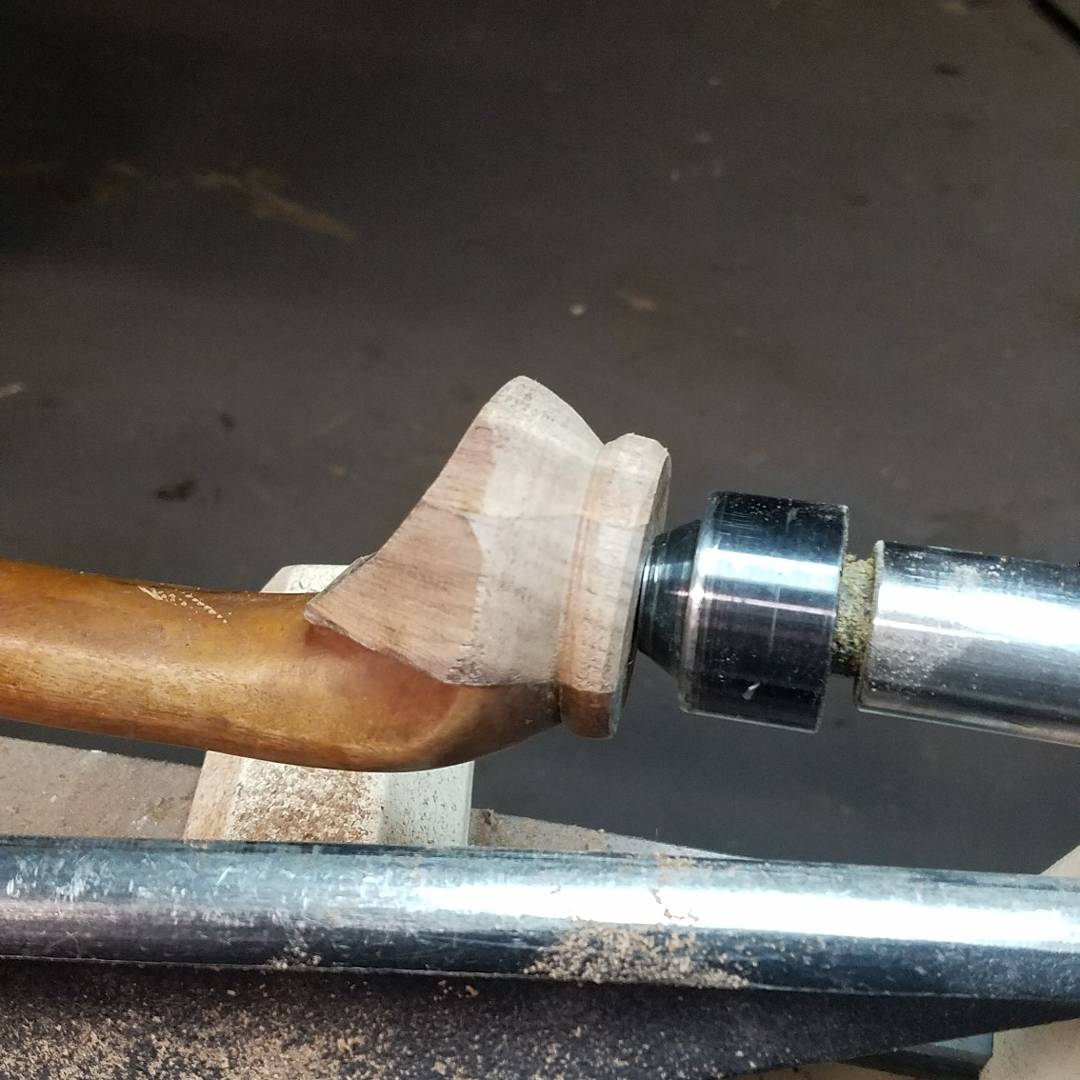

Next, I stuck the leg on the lathe and turned the pad of the foot.


I then brought the foot over to my workbench and carved the rest of the foot by hand using chisels and rasps.


After shaping the foot was complete, I started to sand the leg with 80 grit sand paper working down to 220 grit.

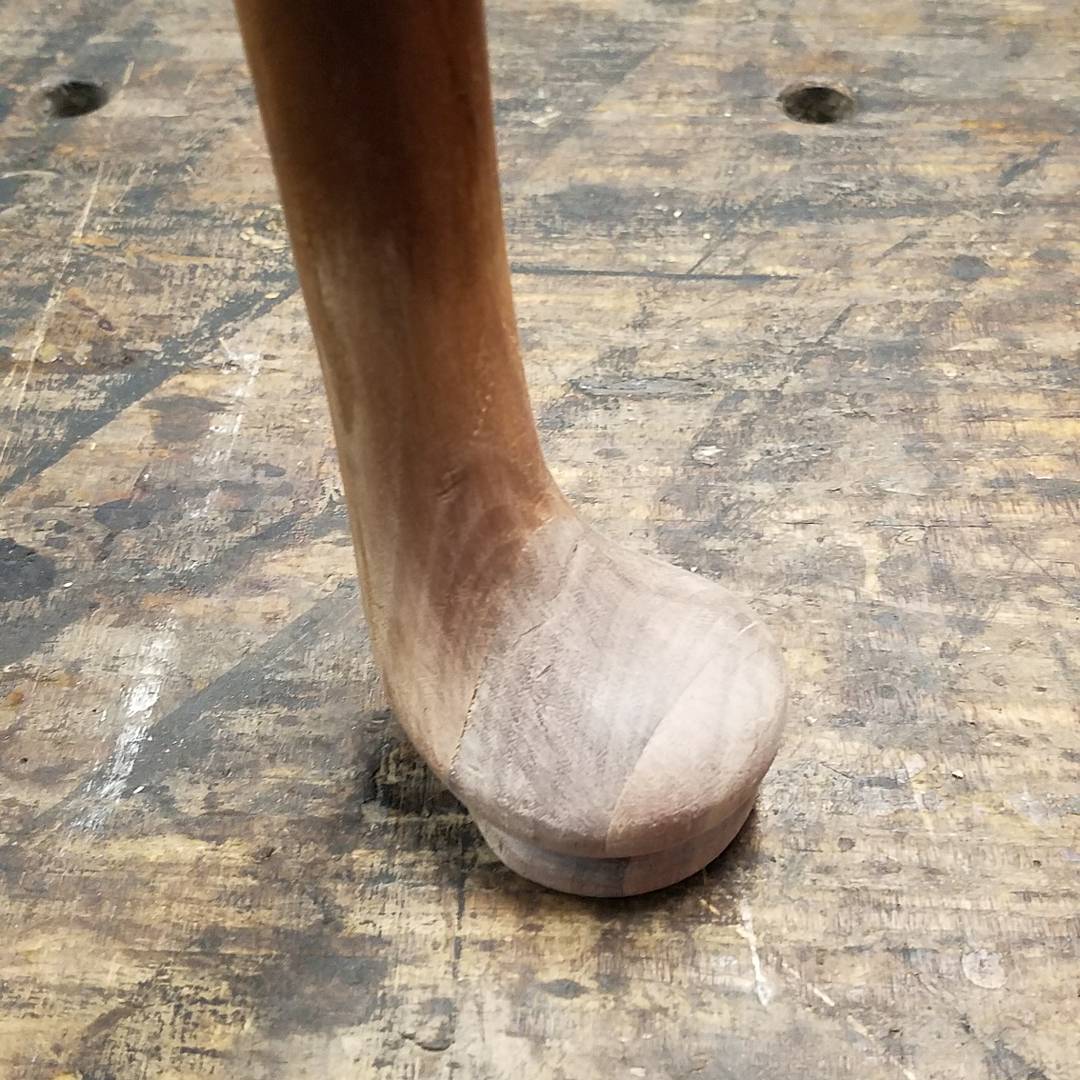

With the foot finished, I was happy with the way it turned out as it matched the other two. I then repeated the same steps for the other broken foot.

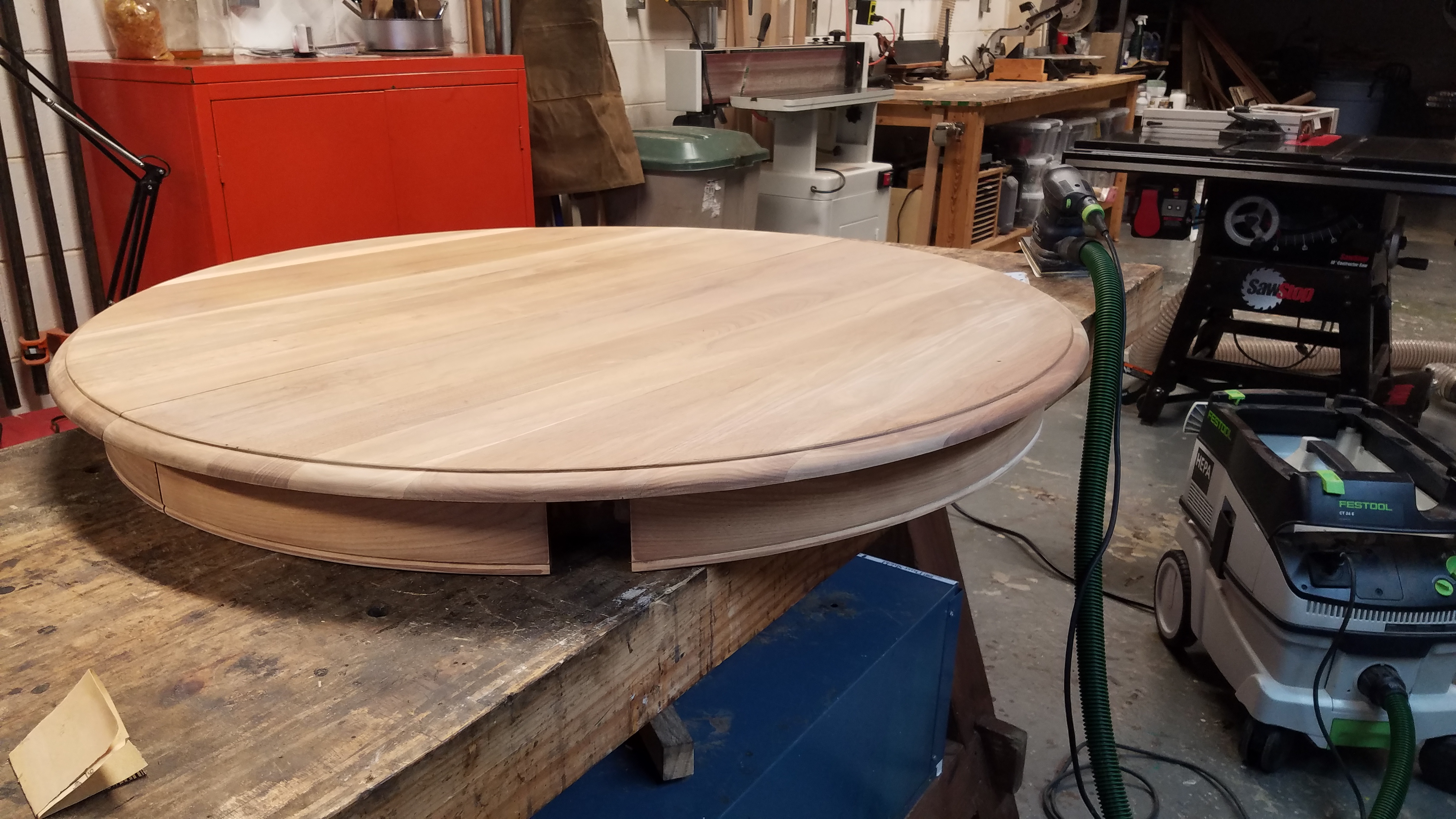

Noticing the top was solid walnut, I decided to sand off the dull stained finish. You can see how bland the table was when we bought it.


A few minutes of sanding, the table was really starting to shine again.

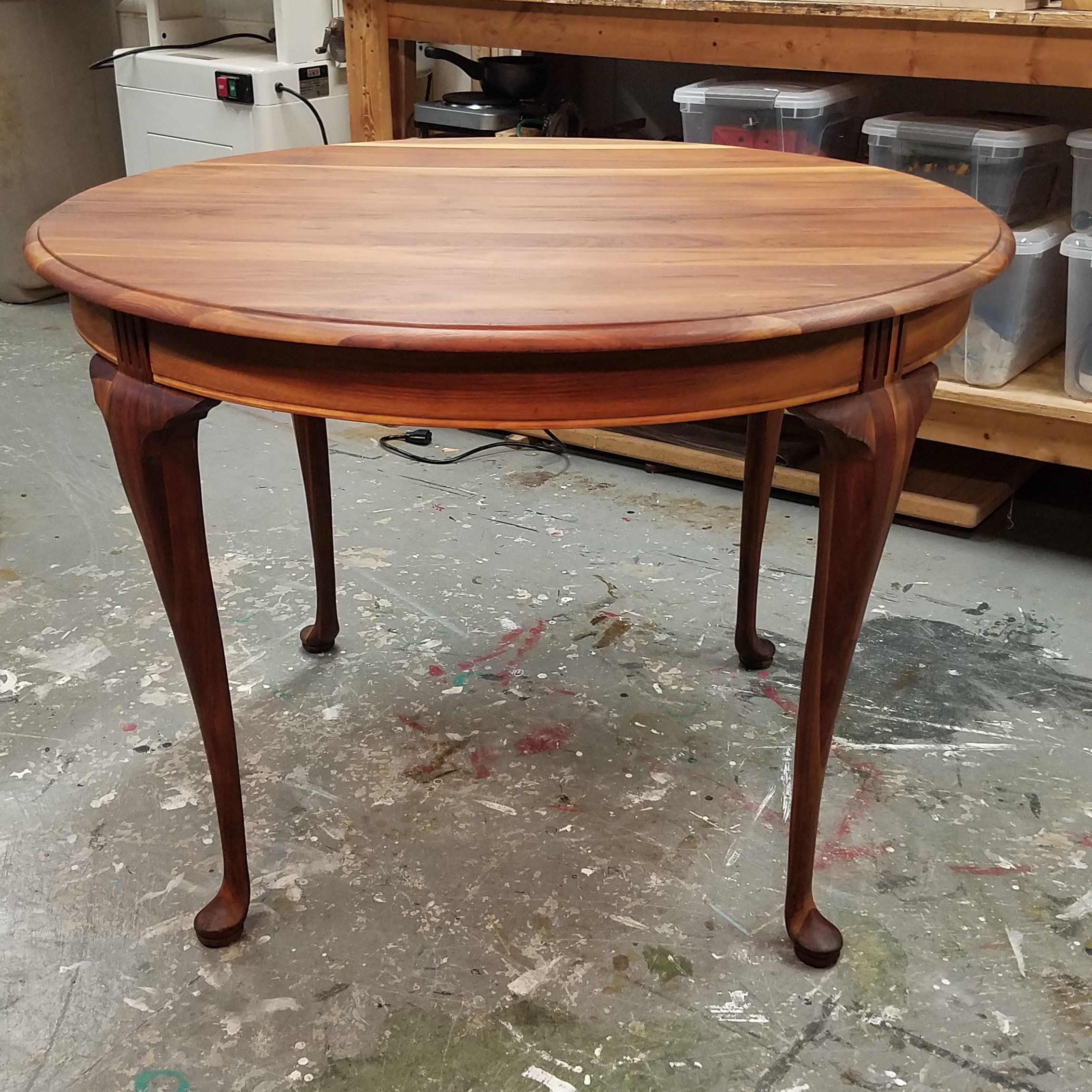

After applying three coats of hemp oil, you can see how the table has been brought back to life having much more character between the sap and heart wood of the walnut. Looks much nicer than the boring spray toner stain that was on it before. This piece will be a nice addition in my wife’s booth as a display table.


Everyday Console Table

I call this piece the “everyday table” because you see this design everyday. I spotted this one at Home Goods just last week. It’s kind of a cross between a table and a bookcase. As far as construction goes, it’s very simple. Six framed legs with a top, a couple of shelves and a cross “X” on each side. In fact, there’s a website that shows how to build this table, pocket screws and all.

20170709_141125

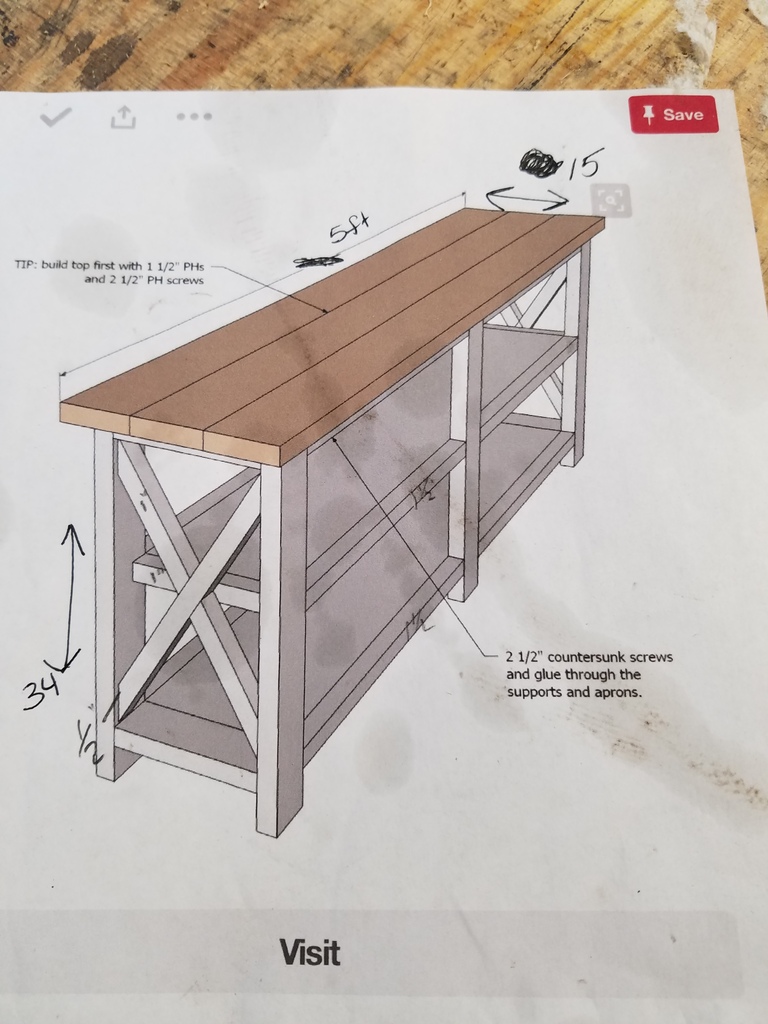

Say what you want about the design and construction, but they are very popular and super easy to build. My wife found the website the other week and asked me to customize one to fit in our dining room as a coffee bar.

20170604_153948

Being true to form, I built ours out of southern yellow pine (2 x 10’s). I wasn’t a fan of the thick 2 x 4 legs so I milled all the parts down to 1″ thick.

img_20170605_111353_327

Keeping it simple, I used pocket screws and glue to attach all the pieces. The shelves are southern yellow pine boards I ripped and glued back together to create a quarter sawn panel so they wouldn’t expand and contract too much.

20170604_140643

The hardest part about building the piece are the X’s on the sides, but all that entails is cutting a couple of half lap joints.

20170604_141457

Here is the finished bar with a vinegar steel wool solution and gel stain on top to give the wood some depth. The coffee bar has turned more into a display table for my wife’s Rae Dunn collection, but that is another story for another day.

20170717_205426

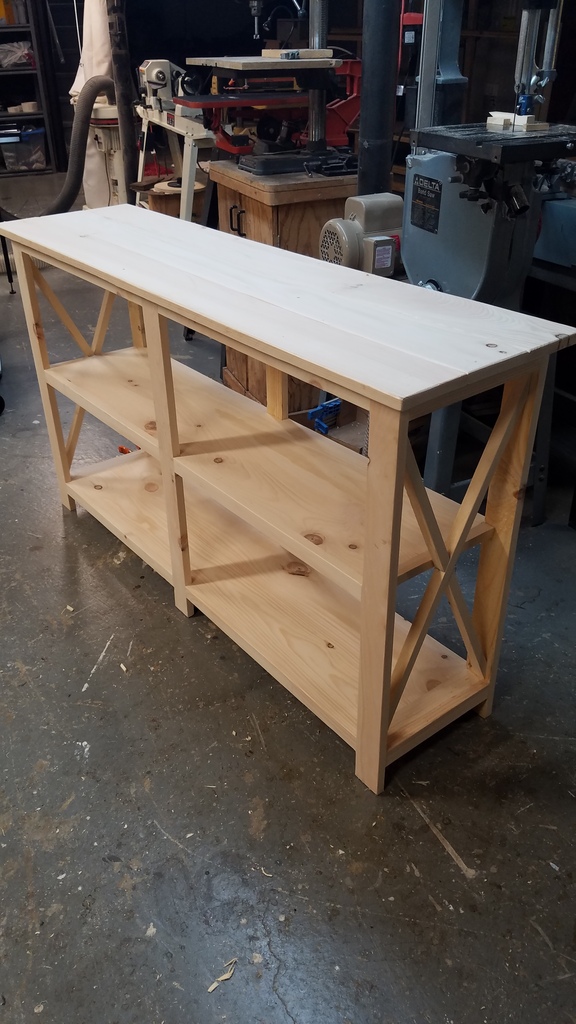

I have since played around with the design again and built another one using eastern white pine. Construction is similar except I used floating tenons instead of pocket screws to build the frames. I’ll still use the vinegar and steel wool solution again on this one and stain it a dark color. My third design will probably have a thicker top and I may use plywood for the shelves. Stay tuned.

20170716_173034





Making a Harvest Display Table

A few months ago, I built a Harvest Table for my wife to use in her booth to sell some of her antiques. You can read the blog post here. She still has that table, but she asked me to build another one for another booth she has. I went to a local antique store that sells reclaimed wood and bought a 4″ square posts and three pieces of barn wood siding. I have a picture of the wood on instagram. Unfortunately, I deleted the original photo from my phone before I uploaded it to photobucket to share here.

I started this harvest table in much the same way as the first one, turning the legs on the lathe. The major difference is that this table was turned with reclaimed birch instead of douglas fir 4×4’s that I bought at Lowe’s. Turning reclaimed lumber is probably not the smartest thing to do since you never know what the integrity of the wood is as it may snap off while on the lathe injuring you, but I thought I’d take my chances.

A couple of the pieces I wanted to turn had some nails stick stuck in the wood. I grabbed a chisel and hammer and I dug into the wood to extract all nails I could find. There were a couple of nails that were too deep to grab, so I carefully turned the leg, stopping every few strokes making sure I wasn’t near the top of the nail.

 photo 20160905_195121.jpg

While a couple of the posts had nails holes in them, the other two had old worm holes. I turned each leg the same and in the end, they were full of character. You can see the final four turned legs here.

 photo 20160905_195135.jpg

With the legs turned, I focused my attention on the top. I took the three slabs of barn wood siding and brought them together to determine how wide the top of the table could be. The boards were only 3/4″ thick and I wanted the top to be thicker, so I took some scrap OSB boards I had laying around from when I was building my shed and built a substrate for the boards.

 photo 20160904_183146.jpg

I glued and screwed the OSB to the siding gluing in the middle of the boards and screwing on the ends. The siding is so old that I figure the expansion and contraction of the wood would be very minimal. Even if they did crack, it would just add more character to the top of the table.

 photo 20160905_161649.jpg

I added some pine edging to cover up the OSB substrate underneath the top boards. Cutting the corners is where my miter trimmer comes in handy. I love that thing!

 photo 20160905_160457.jpg

Flipping the top back over, I figured out where the legs should go. I kept the design simple by using a scrap pieces of edging that were 1 3/8″ wide and making them gauges to show me where the legs should go. Easy P-easy.

 photo 20160905_162059.jpg

Next was to make the frame of table. I grabbed a 2×12 and milled it to 3/4″ thick by 5″ wide pieces and cut them to fit between the legs.

 photo 20160905_163615.jpg

I then channeled my inner Scott Phillips of The American Woodshop and used my Kreg Pocket Hole Jig and screwed the frame to the top. I was trying to build this table as quick and as easy as possible. I wasn’t trying to win a woodworking contest with this table.

 photo 20160905_170752.jpg

I still needed to attach the legs to the frame so I drilled a pilot hole in the legs and screwed in 3/8″ hanger bolts.

 photo 20160905_175850.jpg

I then simply drilled a hole in the corner brackets, fed the bolt through the hole, and tightened it in place with a nut. As the nut tightened to the corner bracket, it drove the leg tight to both sides of the frame. Attaching the legs this way makes it possible to take them off and carry it out of my basement shop.

 photo 20160905_181837.jpg

Flipping it back over, the table was built. Super simple and super fun. I posted this picture on instagram and it has been my most liked picture, ever!

 photo 20160905_195802.jpg

The final picture is the table with an antique stain applied to it. I’m happy with the way it turned out and so is my wife.

 photo 20160906_183410.jpg

Harvest Table

A few moths ago my wife, Anita, and I picked up some old barn wood flooring in Dayton to be used for a harvest table she wanted me to build for her booth. While the wood sat in the basement, she kept looking for the right legs to use for the table. In the end, she opted for me to make some out of Douglas Fir 4×4’s I could buy from Lowe’s. She searched Pinterest for a leg she liked and printed off a picture so I could make it.

 photo ebay 014.jpg

I looked at the picture and started to turn something like it on the lathe. I kept the top of the leg similar to the picture, but changed the bottom to be a bit more simpler. After a few tweaks, I was happy with the end result. Now the challenge was to make three more legs that matched this one.

 photo ebay 017.jpg

I used a piece of scrap wood and marked every major location where there was a bead or valley in the board. I then used calipers to measure those increments and carefully tried to copy them to the next turning.

 photo ebay 019.jpg

After several minutes of careful turning, my second leg looked very similar to the first one on top. Even if the legs weren’t exactly the same, it was fine as they would be far enough away from one another that your eye wouldn’t be able to see the difference.

 photo ebay 023.jpg

If you’ve never turned Douglas Fir, I highly recommend it. It sucks..sucks bad. The crap chips like crazy even with sharp turning tools. Fortunately since the harvest table was suppose to look old, the chips wouldn’t be a big deal.

 photo ebay 022.jpg

After a couple of hours, I turned four legs that sort of looked like one another. The final step was to put them back on the lathe and use my parting tool to cut them at all the same length which was 30″ tall.

 photo ebay 026.jpg

The simplest part about building the harvest table was actually building it. I simply screwed the skirt onto the legs using 2″ screws. I didn’t even bother plugging the holes.

 photo ebay 028.jpg

I used cleats and pocket hole screws to keep the sides from bowing. I then attached the top onto the cleats using 1 1/4″ screws. Super simple.

 photo ebay 029.jpg

This was the table before sanding the grime off the boards.

 photo ebay 031.jpg

This is the table after a couple coats of white milk paint.

 photo blog 002_8.jpg

As you can see, once sanded, the milk paint gives the table a nice worn look. Even though this table breaks three of the seven deadly sins of woodworking, it works for it’s intended purpose. Just don’t expect to see it in a woodworking magazine anytime soon. All that matters is that Anita is very happy with it and finally has the harvest table she has always wanted.

 photo blog 003_10.jpg

Revamped Dining Room Table and Chairs

As promised, I decided to throw up some before and after pictures of the dining room table and chairs my wife and I have been working on for the past few months. As you can see, the $10 chairs Anita picked up at a thrift store weren’t that attractive, but she saw the potential in them.

 photo chairs.jpg

A little bit of chisel work, paint and new fabric brought them from the ’70’s into the new millennium. Anita picked out the fabric at IKEA in order to save some money so the chairs end up being super cheap.

 photo chairs3.jpg

My farmhouse table I made twelve years ago was a massive beast, but it served it’s purpose. After replacing the top with 2×10’s and reducing the width of the table, it fit better in the room.

 photo 20150713_192149.jpg

In the end, the chairs and table look great with the decor of the room. I’m not sure if the Windsor chairs at the ends of the table will stay, but for now they provide extra seating for when we have company over (which is never).
