Wooden Router Plane

On By MVFlaim FurnituremakerIn Antique Tools4 Comments

Several months ago, I bought an old wooden router at an antique store for $20. The price tag said it was a Japanese woodworking tool. I guess it could be if a Japanese guy used it. Looked like a home made wooden router plane to me. I bought the tool simply for the hardware, and the Stanley router bit it that came with it.

I search online and came up with a wooden router plan and printed it out. Then I measured, drew, and bore the three holes for the body on a piece of 2″ thick cherry.

A few minutes on the band saw I had the new body of the router.

The hardest part in making the body was cutting the mortise for the blade holder. I jabbed at the wood with chisels, knives and drill bits in order for the piece to fit. I ended up getting the piece in the hole and then tightening in the back in order to crush the wood fibers into shape. It took a few attemps, but after a few minutes, it finally fit.

Once the hardware was in, I stuck the blade back in to see how the final fit. Once I was satisfied, I sanded the body and applied a few coats of shellac to it.

The last thing I needed to do was sharpen the blade. The easiest way I have found to sharpen a router plane blade is to grind a bevel on an oscillating spindle sander making sure to take a light touch in order to prevent burning the edge of the cutter. Then, I hone the edge and flatten the back with a whetstone.

I stuck the blade back into the router to see how it cuts. Cuts like butter!

If you’re in the market for a router plane, take a look at the wooden versions. They are much cheaper than their metal counterparts as some of their prices fetch up to $150. I see wooden router planes all the time at antique shows for around $40. They work pretty much the same way, they just don’t have the adjustment mechanism to raise and lower the blade. With a little practice, you can easily tap the blade down with a hammer to lower the blade for the next cut.

Soupin’ Up a Stanley Surform File

On By MVFlaim FurnituremakerIn Antique Tools1 Comment

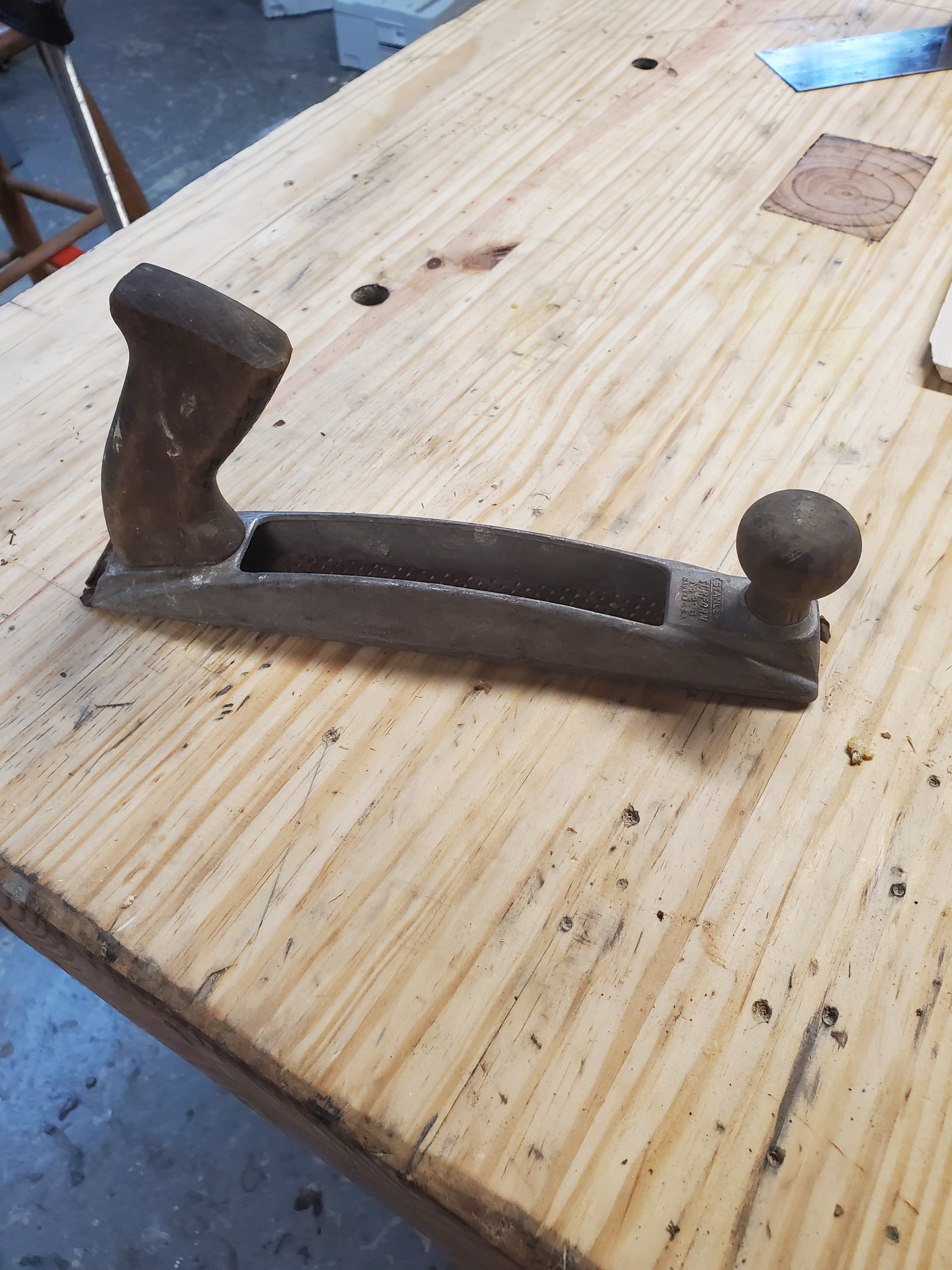

Last weekend I bought this Stanley No 296 Surform File at a local antique show. When I first got into woodworking, I would use these things to round over boards when making wooden sailfish and ducks in junior high shop class. I hadn’t used one in years but for $5.00, I figured I’d play with one again.

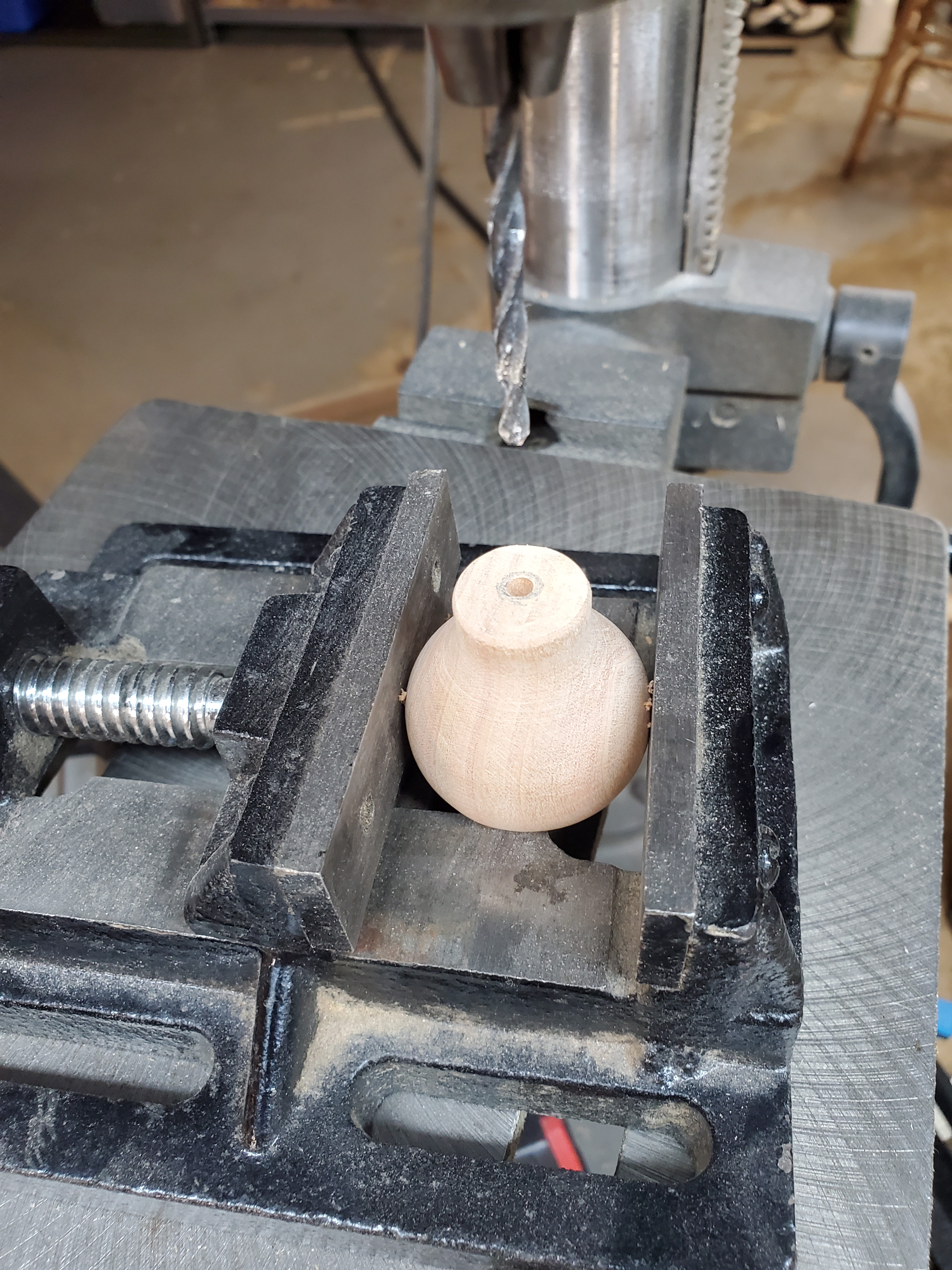

I hated the handles so I grabbed a piece of 2″ square cherry and turned a new knob. The diameter of the knob is a little bit bigger than the original, but I had to keep the base the same diameter so it would sit it the recess of the body.

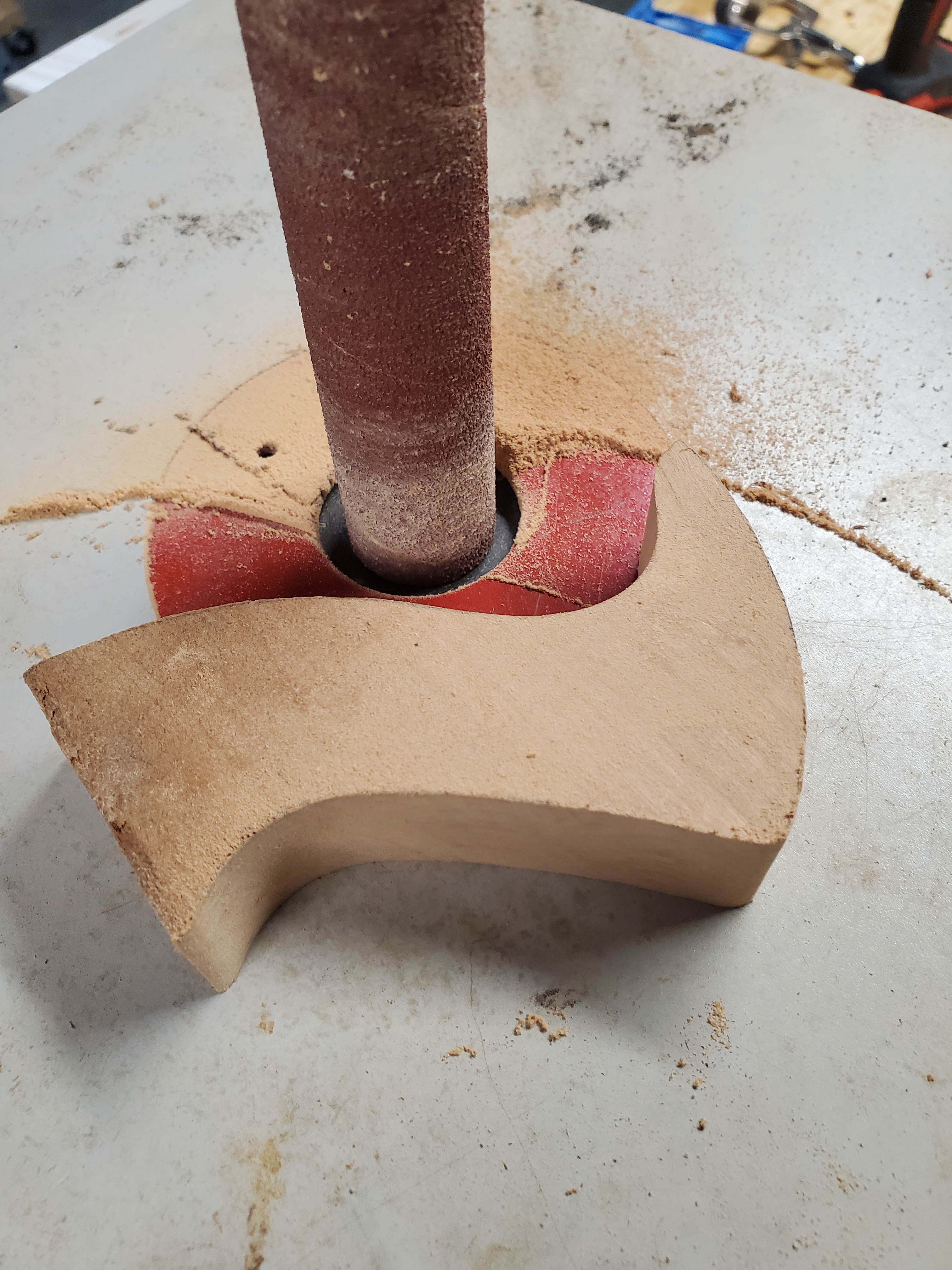

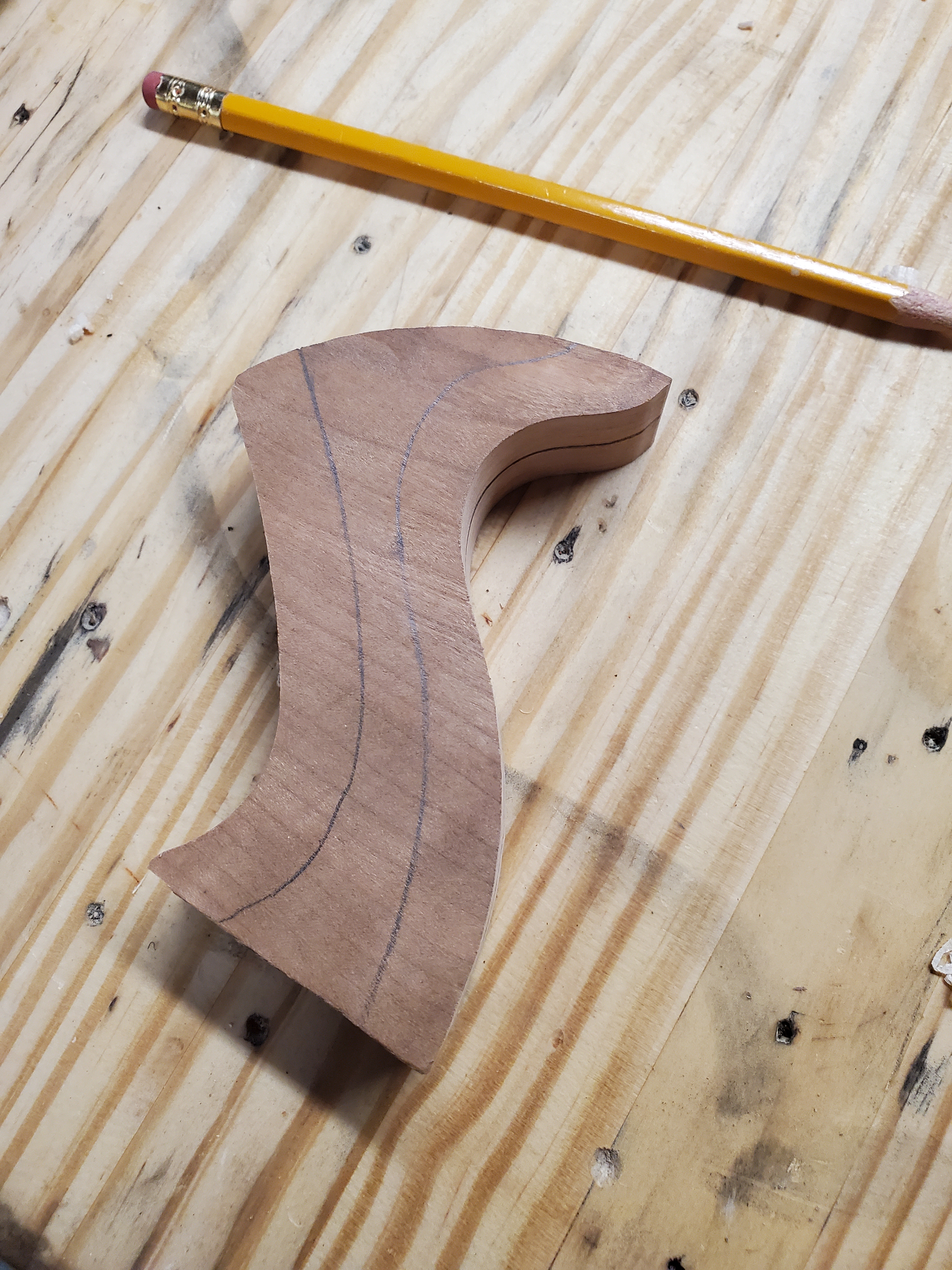

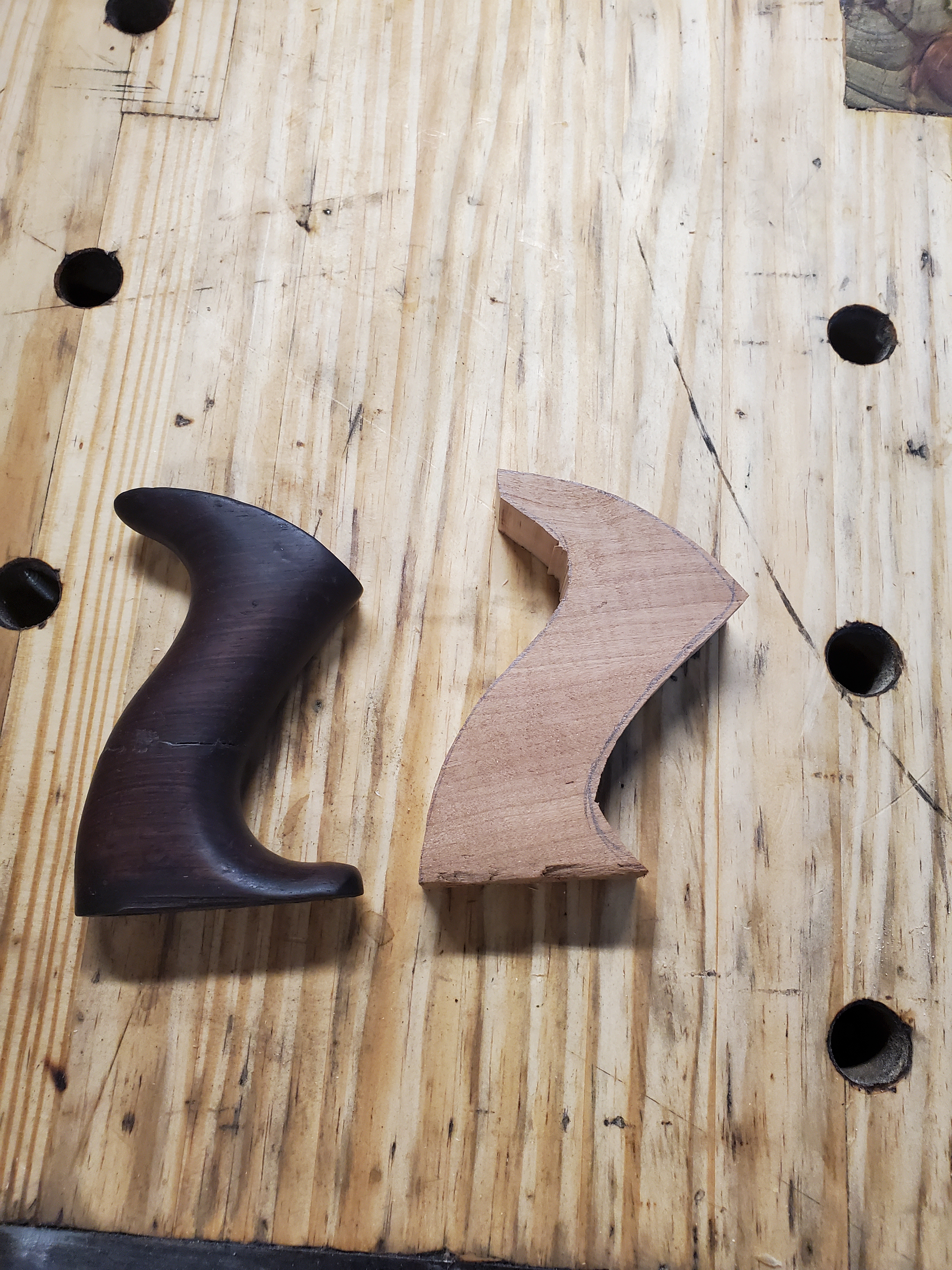

I then grabbed 1″ thick cherry and used an old Stanley tote as a template for the new handle. I then cut it out on the band saw and shaped it smooth with my oscillating spindle sander.

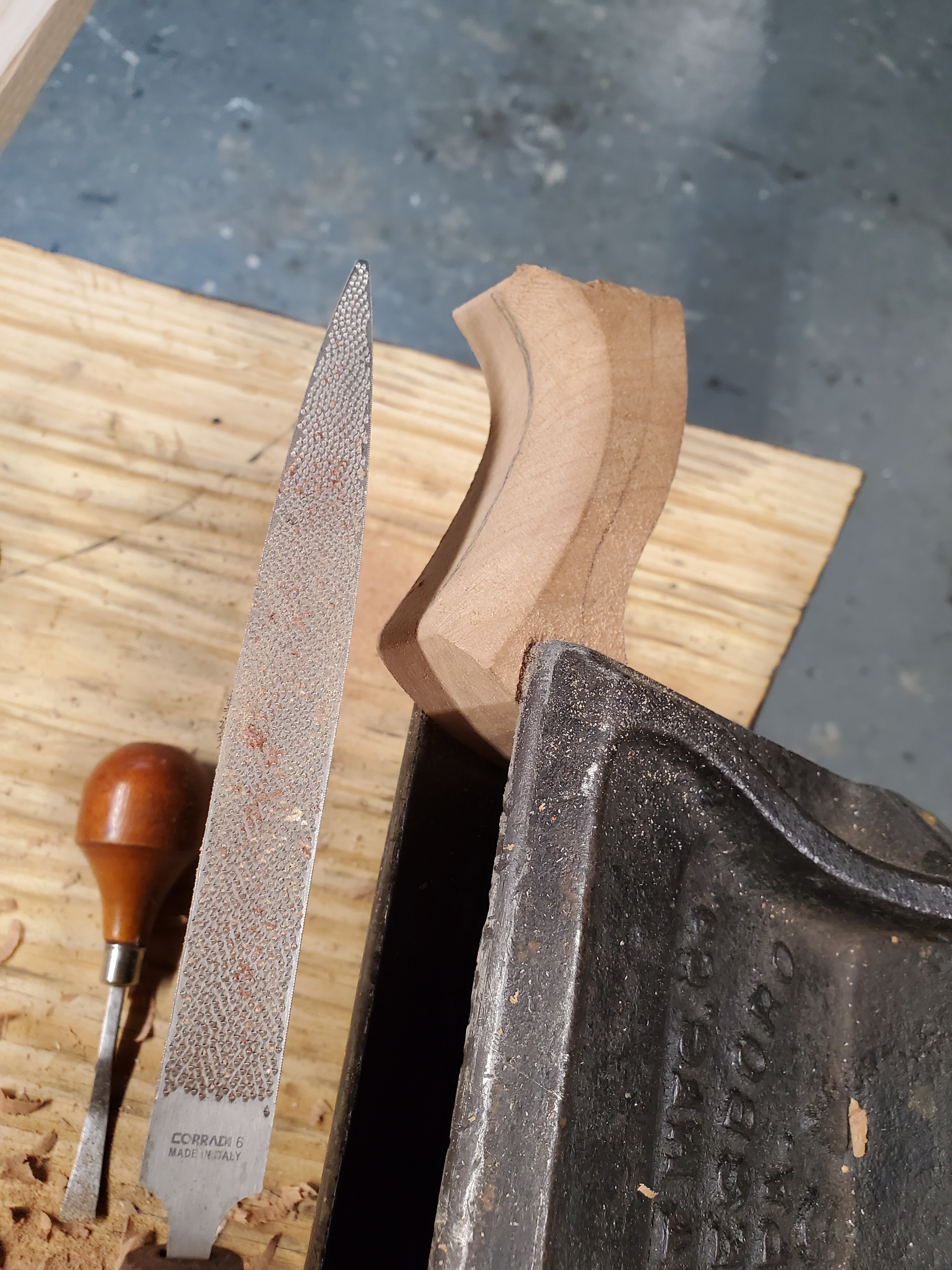

I then shaped it round with chisels, rasps, and files. I could have used a 1/2″ round over router bit but then again, I could also have cut it out with CNC machinery like most modern tool makers. The rasps and files worked just fine.

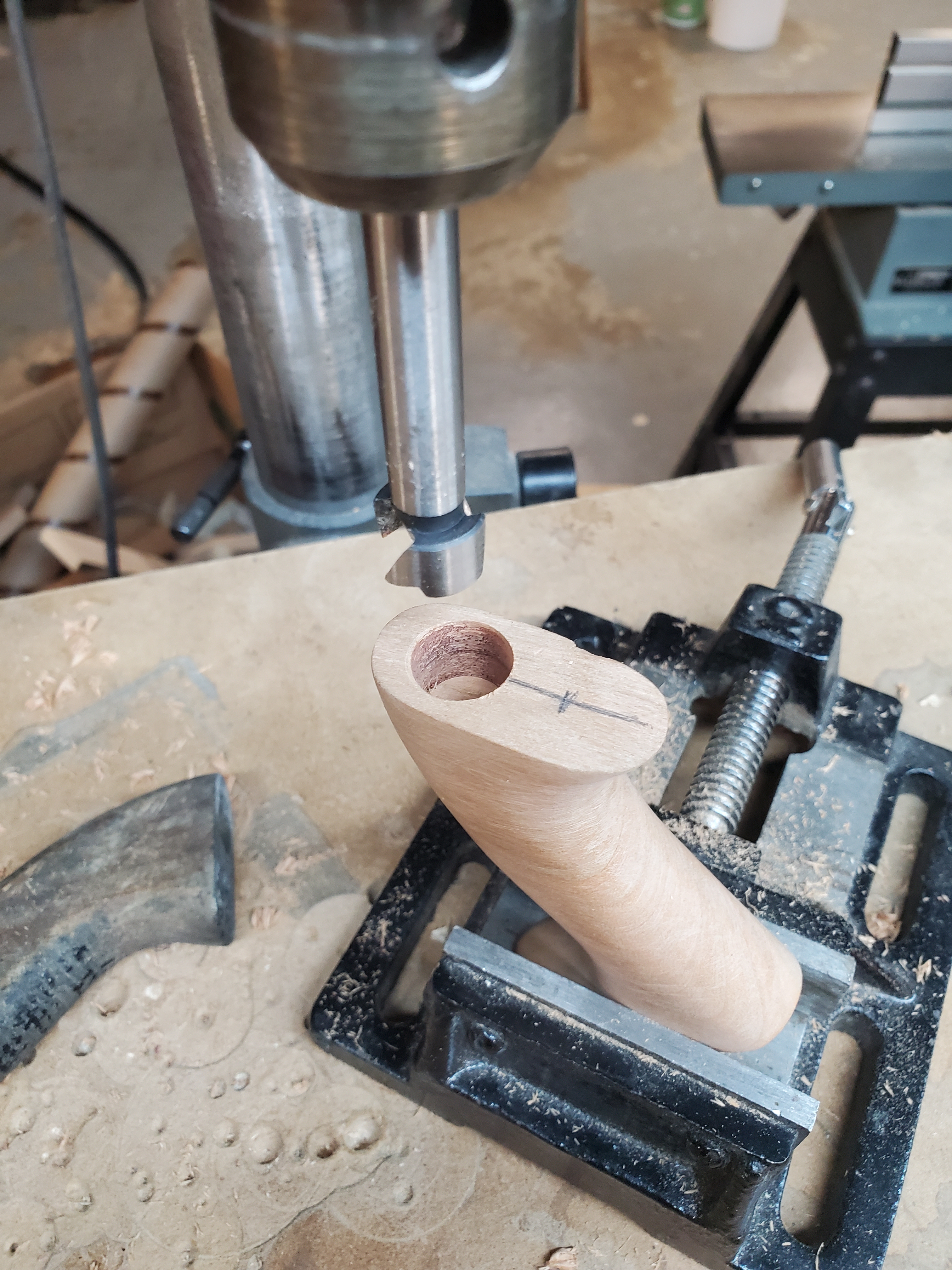

I drilled a couple of holes underneath to fit on top of the fitted body. I simply used the original tote as a template of where the holes needed to be drilled.

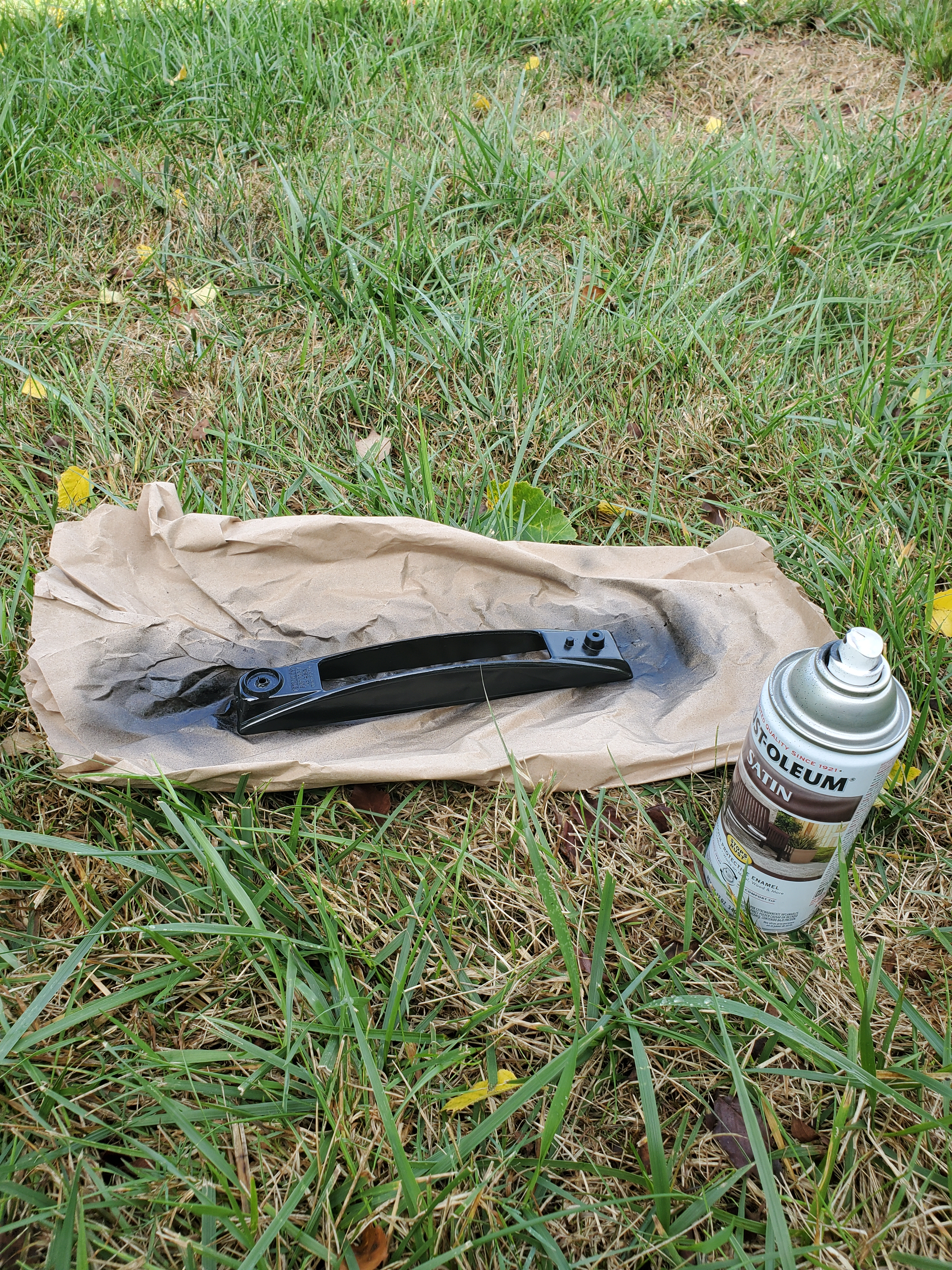

A quick spray paint job on the aluminum body did the trick. After a few coats it was done.

After assembling the parts back together and buying a new replacement blade, the rasp looks better than ever. What’s nice about these tools is that Stanley still makes them so buying replacement blades are super easy as every hardware store sells them.

I now own the coolest surform file in Cincinnati. It was a fun little weekend project.

The Coolest Little Tape Measure I didn’t see Coming

On By MVFlaim FurnituremakerIn Uncategorized8 Comments

A few years ago, Stanley introduced a commerative tape measure to celebrate their 175th anniversery. The tape measure was sold at Menards and independent hardware stores for about $8.00.

For one reason or another, the market took off and collectors were buying them up as fast as they could. Stores ran out of stock and prices shot up to $60.00 each on eBay. There was even a guy who was making custom leather pouches for the rule. It got so bad that well known woodworking bloggers were posting websites where you can still buy the tape measure for around $10.00

A year later, after the rage went down, Menards got more stock in but end up having to clearance them out for $5.99.

I bought one when they first came out and started to use it. It’s a nice rule but unfortunately it has no tape lock which sucks. But wouldn’t you know it, the bugger is really handy. We keep it laying around our house and it’s the first tape measure we grab when looking for something to measure. Plus, it’s easy to keep in my pocket when we’re out and about. The nice thing about its design is that it blends into our decor and doesn’t stick out like a sore thumb. We just have the rule laying around the house. Which picture below looks nicer?

You can still buy the tape measure on eBay for a reasonable price. If you need something that’s handy to have around the house, buy it. You won’t regret it.

My $1.00 Plane

On By MVFlaim FurnituremakerIn Antique Tools12 Comments

A couple of weekends ago, I went on the World’s Longest Yard Sale on US 127 looking for old tools and other things to sell. Sunday, I ran across a guy selling junk just north of Cincinnati and saw this plane on a table. The guy told me that his prices were negotiable so I asked what he wanted for this plane. He told me $2.00, but I countered that I would give him a buck for it and he accepted. I really didn’t need it, but I wanted to buy something during the day. The blade was marked Van Camp which I believe was a hardware store back in the day however, the plane was more likely made by the Sargent Tool Company.


Every time I restore a tool, I start by sticking the parts in a tub of water with a cup of citric acid. I let the parts soak for about an hour and then wipe them clean once I take them out of the solution.


I took the time to fettle the bed since the plane’s body was so small. Honestly, I don’t think the bed was that bad to deserve to be fettled, but I was in the mood. I went through a series of wet sand paper grits, from 220 to 500 to 1000 grit.


You can see the smoothness of the bed when shown through the light. The bed doesn’t have to be completely free of pitting, just flat enough from front to back.


After the bed was fettled, I soaked all the parts of the plane with my custom solution of mineral oil, orange oil, and melted bees-wax.


Next, I sharpened the blade by using my Tormek sharpening system and a set of water stones. I was able to shave the hairs on my arm with this blade.


All tuned up, the plane takes nice curly shavings. Not bad for a buck.


For years I used this squirrel tailed plane. It works okay but the shavings are not that clean and it’s a pain in the ass to set properly with the screw and cap.


You can see the difference when you flip the two over. The area of the mouth is a lot tighter on my buck plane than the squirrel tail plane. The tight mouth keeps the wood fibers pressed down just until they hit the edge of the blade giving me a nicer shaving.


My new plane still fits nicely in the holder where my old squirrel tailed plane sat. Maybe I should have given the guy $2.00. haha


Using a Lion Miter Trimmer

On By MVFlaim FurnituremakerIn Antique Tools14 Comments

A couple of weeks ago I posted on a Facebook page called “The Collectors of Antique/Vintage Tools” about a Lion Miter Trimmer I just restored. A few people in the group replied to my post asking what the tool did. I was surprised that so many people weren’t aware of this tool, that I decided to talk about it here.

photo mitertrimmer002.jpg

I’ve owned an AMT miter trimmer for over twenty-five years and love it. They are simple tools that were popular for people who made picture frames back in the day. You use it by swinging the arm pulling the knife through the piece of wood, slicing off perfect little curls precisely at whatever angle you set the fence at.

photo mitertrimmer030.jpg

The miter trimmer has fences on each side that can be positioned between 90 -45 degrees. There are adjustable stops at 90 and 45 that can be fine tuned with a screwdriver. Once you swing the fence to whatever angle you want, you tighten the wing nut on top locking the fence in place. As you can see in the photo, this machine also has layouts for 60 and 67 1/2 degrees.

photo mitertrimmer004.jpg

After fiddling with the machine for a few minutes, I positioned the adjustable stops precisely were they needed to be. As you can see, the stop is a little shy from the 45 degree scribe line on the bed. I’m not sure why this is, but the tool is probably over 100 years old, so it’s allowed to be off a little.

photo mitertrimmer005.jpg

You can see how the tool slices off perfect little shavings. When I was restoring the tool, I took the knives off and sharpened them on my Tormek using the Tormek knife jig. Before I sharpened them, the knives couldn’t cut butter.

photo mitertrimmer031.jpg

photo mitertrimmer007.jpg

The main reason I love my miter trimmer is that it cleans up the cuts that are made from my miter box and saw. For safety reasons when doing delicate trim work, I like to use my little miter box instead of a powered miter saw.

photo mitertrimmer022.jpg

However, the saw doesn’t leave the wood with a nice enough cut.

photo mitertrimmer026.jpg

Not only that, the miter box doesn’t even produce a perfect 45 degree angle throwing the two pieces out of square.

photo mitertrimmer025.jpg

Here are the two pieces after they’ve been trimmed up with the miter trimmer.

photo mitertrimmer019.jpg

The proof is in the pudding here. All the joints fit nicely together and the frame is a perfectly square inside. No wonder why picture framers loved these things.

photo mitertrimmer006.jpg

Another good use of a miter trimmer is doing outside corners like attaching molding to a bookcase or cabinet. Here is a piece of molding that I cut with one of my molding planes.

photo mitertrimmer012.jpg

If I stick the piece in my miter trimmer and try to trim it up normally, you can see how the inertia of the cut pulls the molding off the bed. There’s simply not enough surface area in the front of the molding to keep the piece stable.

photo mitertrimmer011.jpg

The cut it produces this way is garbage. Not only is it not 45 degrees, it’s not even a straight cut.

photo mitertrimmer027.jpg

The way to get around this, is to take the body off a combination square and clamp it to the fence of the trimmer. Use a scrap piece of wood and cut a 45 degree angle to the end with the trimmer. Then use the cut as a gauge to accurately place the combination square under it. It’ll take a little time and a few test cuts, but once you have the combination square properly position, you’re ready to go. Note: You can buy an attachment from Grizzly for about $30 which does the same thing as this, but I’m not sure if it will work on old Lion Miter Trimmers.

photo mitertrimmer010.jpg

Now you can use the bottom of the molding to rest against the fence for support and make a perfect 45 degree cut.

photo mitertrimmer013.jpg

photo mitertrimmer015.jpg

Repeat on the other side of the trimmer for the other side of the molding and you’ll get a super clean and accurate joint.

photo mitertrimmer017.jpg

Unfortunately, the website for the original Lion Miter Trimmer no longer works which makes me believe they are no longer in business. http://www.lionmitertrimmer.com It’s a shame because the tool is truly an awesome piece of machinery.

Restoring a molding plane

On By MVFlaim FurnituremakerIn Antique Tools12 Comments

I’m constantly buying old molding planes at local auctions. I can usually pick them up for a song since they really don’t attract much interest from tool collectors. They come in various forms and sizes but the most common in the marketplace are hollows & rounds and beading planes. This plane is a cove and bead. A sweet little plane that is useful for adding little detail moldings on cabinets.

This plane is overall in good shape, just a little dirty and neglected. But a little elbow grease and a citric acid bath, it will tune up in no time.

The blade has some surface rust but no serious pitting. I dipped it in a citric acid solution which contained a tablespoon of citric acid with five cups of warm water. My trough is nothing more than a scrap piece of plastic gutter with an end cap glued to each end. It works well and hasn’t leaked in the past three years.

After the blade sat in the solution for a few hours, I scrubbed it clean with a piece of steel wool and washed it off in the sink. I then sharpened the back by lapping it on some water stones.

As far as the body, I didn’t do too much. I simply wiped it with 00 and 000 steel wool then applied a couple of coats of mineral-oil/orange-oil/beeswax solution to the body and wedge. I didn’t rub steel wool on it too much as I didn’t want the plane to look new. Since it’s over a hundred years old, it should look like it’s that old but in working order.

The biggest obstacle that you’ll face tuning up a molding plane is matching the blade to the soul’s profile. After decades of the wood expanding and contracting, losing moisture and drying up, it’s not unusual for the soul to change. This plane’s blade doesn’t match up perfectly to the soul. ideally the blade should protrude equally along the soul. Since it doesn’t I have two options. One is to reshape the blade to match the plane’s soul. Or two, reshape the soul a little bit to match the blade. The first option is the best since you don’t want to weaken the soul by removing wood away but in this case, so little wood needs to be removed, that option two would be much quicker.

I needed to remove a little bit of wood by the end of the bead so I took a bastard file and shaved it down. I periodically checked the blade in the plane to make sure I had a constant protrusion along the soul. Once it did, I was done.

Next I needed to see how the plane performed. I grabbed a piece of straight grain poplar and started planing. The plane shaved off perfect shavings with no clogs.

This is how the molding would look when installed. You can see how the shadows bring out the curves of the molding. A nice little detail that adds a touch of class to cabinetry.

The plane looks nice too. It still has a nice warm dark color and plenty of patina to show off its age. I could have bought a router bit to do the same thing, but where’s the fun in that?
