Why didn’t I do this 25 years ago?

I’ve owned this Kreg jig for over 25 years. In fact, I believe this is the first style of Kreg Jig that was ever sold. I bought it at The Woodworking Show when they were worth going to before the age of the internet. It’s worked well over the years, but I noticed that I would have to back the bit out to remove the shavings before I could reach the final hole depth. Wasn’t a huge deal but it did make drilling pocket holes tougher.

Then yesterday I went to Lowes to buy more screws when I decided to buy the small kit that came with a new drill bit for $20. My bit was duller than shit from years of use and I wanted the single pocket jig anyway for drilling pockets in narrow wood. The bit itself is about $14 so the kit was a no-brainer.

I noticed the new jig has a relief hole right behind the metal collar to allow for chip removal while my original one didn’t have that.

So, I took my jig to the drill press and drilled a couple of 11/32″ holes behind the metal collars. Stupidily simple.

Sure enough, the holes worked perfectly removing the chips. Twenty five years of using this damn thing and it could have been so much better had I just thought about the chip removal issue for a minute.

Hillbilly Tool Stand

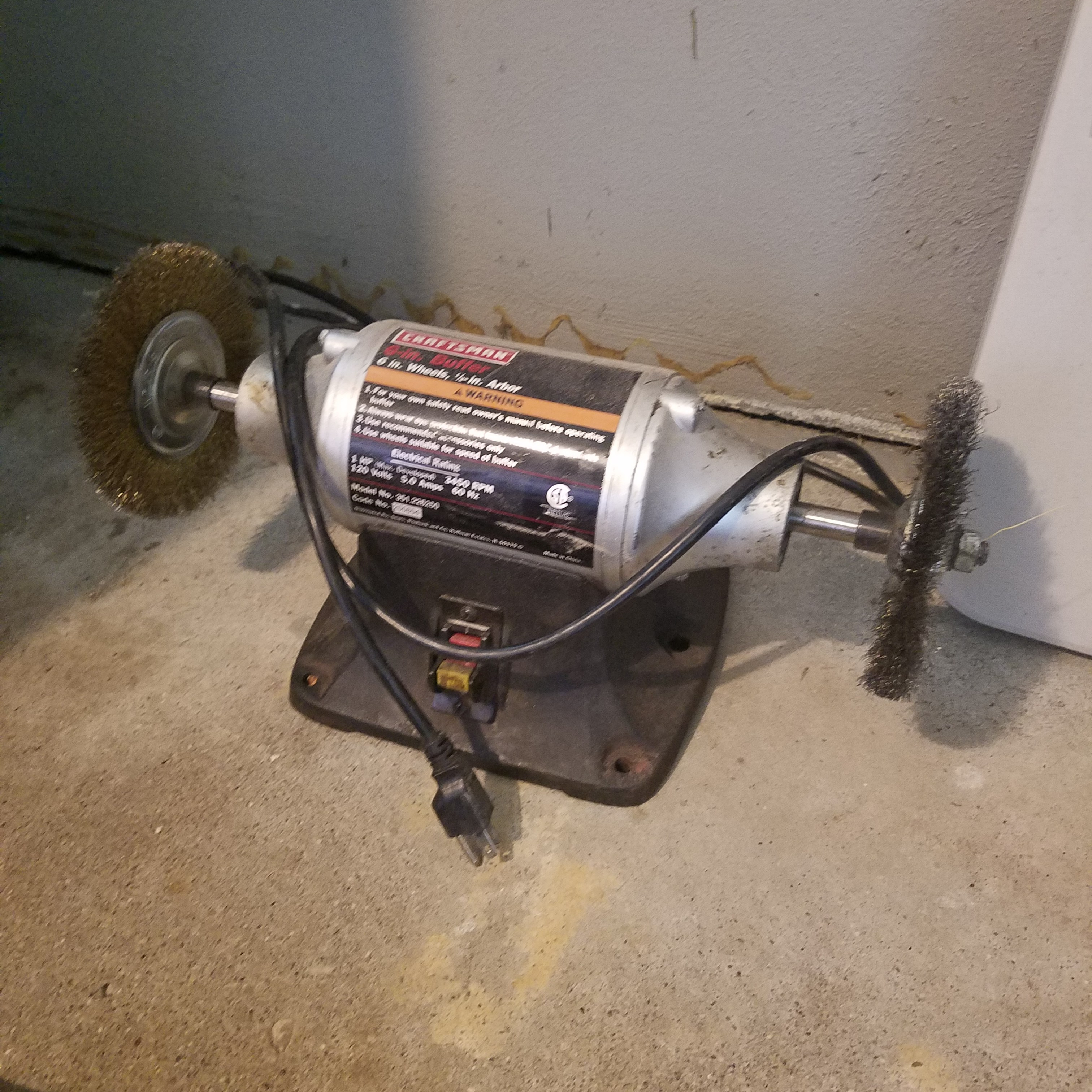

My wife hates this thing. She hates the noise it makes as well as the little wire bristles that fly off the wheel and land onto the floor only to be stepped on with bare feet. Can’t say I blame her as I too have had the fun of pulling a wire out of my foot from time to time. So, it’s been delegated to the garage from now on. The problem was when I used the thing in the garage, I had to step on the end of it with my foot so it wouldn’t spin away, and then bend over to clean my tool parts. Not exactly ideal working conditions.

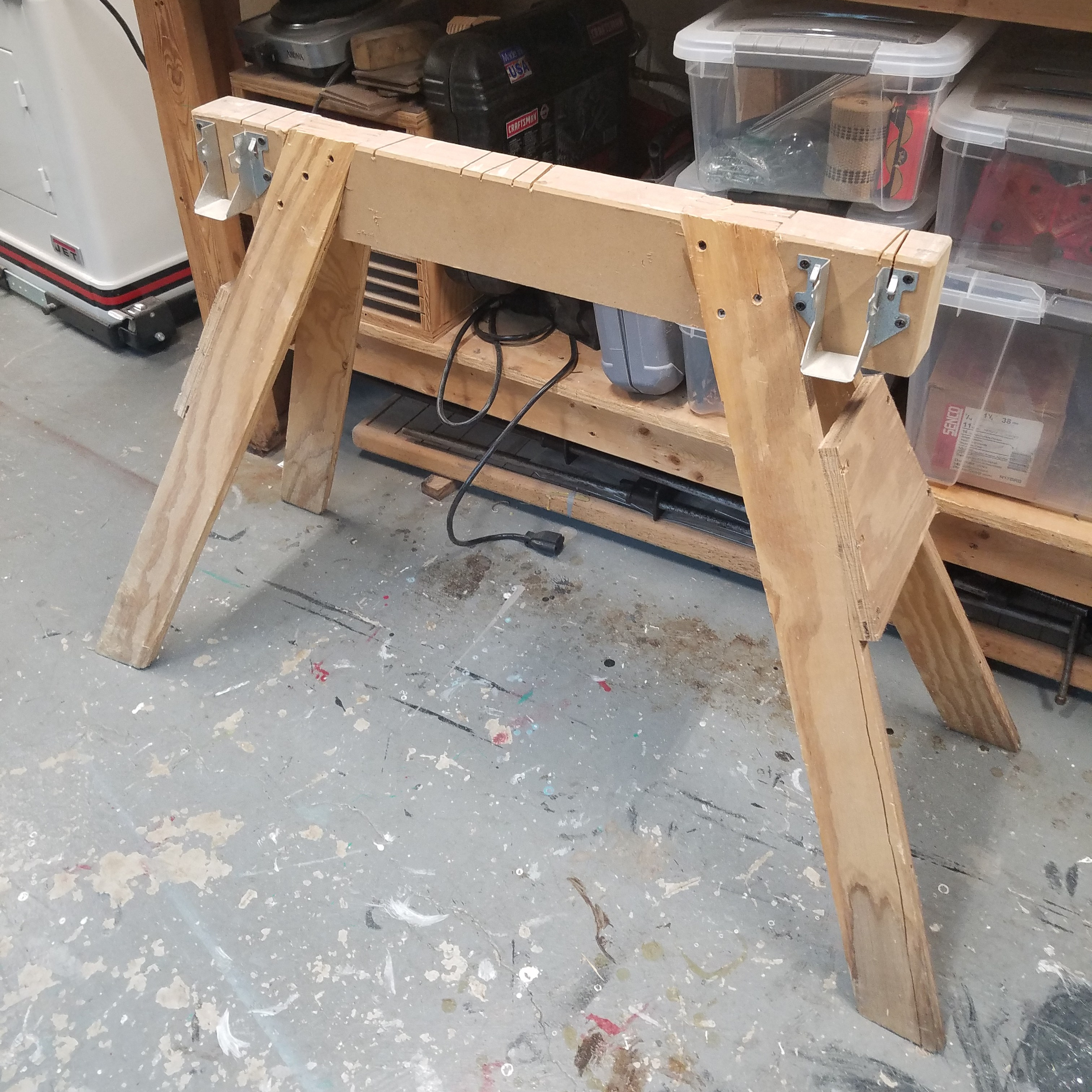

I was going to buy a tool stand from Harbor Freight for $40 but, I was too cheap to buy one. Seems like the money was never available since it’s been tight around here for awhile. I kept thinking of what else I could use as a tool stand when it dawned on me to use one of my old sawhorses.


I simply took three 3/4″ boards that were 6″ wide to lift the buffer to a comfortable height, and laminated them together. Then took two more to straddle the side of the sawhorse and bolted the buffer onto a base. So simple it’s stupid, but it works.


I guess if I worked for a woodworking magazine, I’d make this fixture out of nice cabinet grade maple plywood and stainless steel woodworking screws, but since I don’t, I just whipped it up with some scrap wood and drywall screws. Terrible I know. If you want, you could probably submit this tip to a magazine and win a cordless jigsaw. haha. You can thank me later.
