Console Table

On March 15, 2021March 15, 2021 By MVFlaim FurnituremakerIn Furniture4 Comments

I made this table for my wife last year but never blogged about it. Kind of stupid to call yourself MVFlaim Furnituremaker if you never blog about making a piece of furniture. While I was building it, I took a bunch of pictures of the process and intended to show all the steps, but apparently a bug crawled up my ass and for some reason, I deleted all the photos I took. I guess I was having a bad day. So, I had to search my Instagram account to find some pictures to load here.

The five foot long table is a common table you’d find in any furniture store. The table is really nothing special. In fact, the most unique feature of the piece is the drawer fronts with chair caning panels.

I simply made three drawer fronts with a rabbet in the back. I then glued chair canimg on a plywood panel and stuck it in the rabbeted recess. Since the drawer fronts are stuck to the front of each drawer box, the plywood remains stable inside the rabbet and doesn’t move around. I had photos of the entire process but that bug was in my butt pretty far up so they’re gone forever.

I fitted the carcass together and glued and screwed the bottom rails and shelf.

Joinery I used was mortise and tenons I cut on the table saw and chopped with a 3/8″ mortising chisel. The top rail was joined with a hidden dovetail.

Legs were cut from 2″ square poplar boards I glued up and tapered on the band saw. I then cleaned them up with my smooth plane.

This is the table before Anita painted it dark gray and applied the gold handles. Maybe the next peice of furniture I make I’ll be in a better mood and won’t delete the pictures of my progress.

Updating The Kitchen

On March 11, 2021March 11, 2021 By MVFlaim FurnituremakerIn Workshop2 Comments

About 12 years ago, we decided to update our kitchen from the 1980’s colonial style cabinetry into the new century with a new Tuscan style of cabinetry. It looked great for years but, after we got hit with the tornado last year, Anita wanted to use the opportunity to update the kitchen again into a modern farmhouse style of kitchen. This is the only photo I have of the cabintery I made when we were reinstalling them after the tornado.

Luckily, the only thing that really needed to be done was simply paint the cabinets, get new hardware and update the backsplash. Anita went with a two toned cabinetry with white on the top and dark gray on the bottom.

We took down the Tuscan style tile and installed ship lap as the backsplash. It’s been up for the past eight months and has held up better than I would have expected. There has been no staining on the wood whatsoever even though the kitchen gets used on a daily basis.

The biggest issue we had with the update was the that I had to make a new drawer front for underneath the sink. Before that, we had a wooden fluer de lis applique nailed on the kitchen base.

Making the drawer front was going to be a challenge since I no longer owned a router table. I had to jimmy one up real quick so I grabbed a piece of plywood and laid where I wanted the router to sit.

Then I drilled a few holes so that I could install the router with an opening large enough to accept my panel raising bit.

I then grabbed a piece of scrap wood and routed out the underside to act as a fence.

Adding two clamps to hold down the fence, BOOM!, an instant router table. Using a router table like this can be a bit dangerous as I had no safety shields above the bit, but it just kept me on my toes.

After a little trial and error with scrap wood, I was able to route the edge of the panel with ease.

I needed a round over for the edge of the drawer front so I stuck a 3/8″ round over bit in the router and grabbed another piece of scrap wood for the fence.

My sample board looked great, so I was confident I could get this bit to work well.

After taking a few passes and cleaning up the edge with a rabbet plane, the drawer front was done.

My wife painted the piece dark gray to match the other cabinets and I nailed it onto the kitchen base with 18 gauge brads. Nearly a year after we got hit with the tornado, our updated kitchen is complete.

Repairing an Accent Table

On December 24, 2019January 20, 2020 By MVFlaim FurnituremakerIn Furniture, Uncategorized2 Comments

My wife bought an accent table at a local thrift store yesterday. She hesitated on buying it because it needed some work but I assured her that I could fix it quickly.

When we got it home, I examined how to repair the stretcher and make the legs not so wobbly. It seems that someone else tried to repair the stretcher in the past with no luck.

After popping off the glue blocks, I noticed that the only joinery on the legs was a dowel rod and some glue. It’s no wonder why they wobbled. I’m not sure how old the table is but it’s made from mahogany and the fasteners are straight slotted screws. My guess would be around the 1940’s but that’s just a guess.

If I was to restore this table properly, I’d used mahogany for the stretcher and make it similar to the original but I’m by no means a professional furniture restorer. If anything, I’m closer to the craftsmen you see on Flea Market Flip where people buy a $40 wheel barrow at an antique show, turn it into a coffee table and sell it at a New York City art show for $450. Except, I don’t do that dramatic transformation on pieces and don’t get anywhere close to those prices. (Personally, I think that show is fake). My wife will eventually paint the table so I just grabbed some scrap wood.

I grabbed some red oak and planed it down to 3/8″ then drew some arches on it with my french curve. Then it was onto my band saw and spindle sander to cut and sand the stretcher to shape. I just whipped this shape up in my head without much thought. I think it’ll do fine.

To break the edges of the stretcher and give it curves, I used my specialty scraper with various radius’s cut out and scraped the edges to shape using the 1/2″ radius.

Cutting the piece to proper length took a little trial and error, but I eventually got it to seat in the mortises with the legs being perpendicular to the top when the table was flipped over.

Then I grabbed some scrap pieces and glued and pinned hefty glue blocks onto the legs to hold them to the top better.

Here’s the table all glued up waiting for paint. My wife will paint the table either white, or black, or green, or duck egg, or whatever. I’ll have to wait and see which one she picks. I’ll throw a picture up when she’s done. Merry Christmas!

UPDATE 1-20-20; Anita painted it white with a stencil on top.

Fixin’ Up a Buffet

On October 7, 2018October 7, 2018 By MVFlaim FurnituremakerIn Furniture6 Comments

If you follow my blog, then you know that my wife and I have a couple of booths in antique malls where we buy and sell antiques. Occasionally we’ll buy old furniture and fix it up. This is a buffet we found at a yard sale for dirt cheap. It had some issues, but the price was too good to pass up, plus I knew I could make it usable again.

The first issue I had to take care of was the stretcher on the bottom looked like a dog gnawed on it.

The easiest thing to do was simply cut it off. Since Anita was going to paint the piece, I wasn’t too concerned about the dowel cut offs showing. Removing the stretcher didn’t cause the buffet to lose any stability.

The biggest issue the buffet had was the runner on the large drawer on top was completely broken off. There was no way to properly repair it so I decide to make a new one out of some scrap wood.

I milled a new piece to size and then used my Stanley No 45 plane to plow a 1/4″ groove down the middle on both edges.

I then cut a wide groove down the face of the piece with my table saw and cleaned it up with my router plane.

With a tenon cut on the end of the piece and a rabbet cut on the other end, the new piece worked perfectly in the old drawer. I tacked down the runner to the back of the drawer with a couple of small nails.

After the drawer was fixed, I shaved down the edges of the doors with a block plane so that they would close better. Once the buffet was functional again, Anita painted the piece with milk paint.

You can see how the milk paint gives the buffet old world character. This piece should sell quick in the booth.

Wood Movement

On January 14, 2018January 14, 2018 By MVFlaim FurnituremakerIn Workshop2 Comments

Over the past few months, I’ve been making these Ohio signs and selling them in my wife’s booth. They’re a simple thing to make. Just cut the wood in the shape of Ohio, then glue and staple the pieces to a plywood back. Originally I used old pallet wood to make the signs, but the past few batches I made them with old fence boards.

Last week, when I was helping my wife move things around in her booth, she told me that some of the signs had warped. Worried, I grabbed a few of the signs to look at them. Because we had such a hard cold spell, the antique store was kicking up heat to stay warm. Apparently, the dry heat sucked all the moisture from the signs making them bend up. Even the top of an old bench my wife was selling warped.

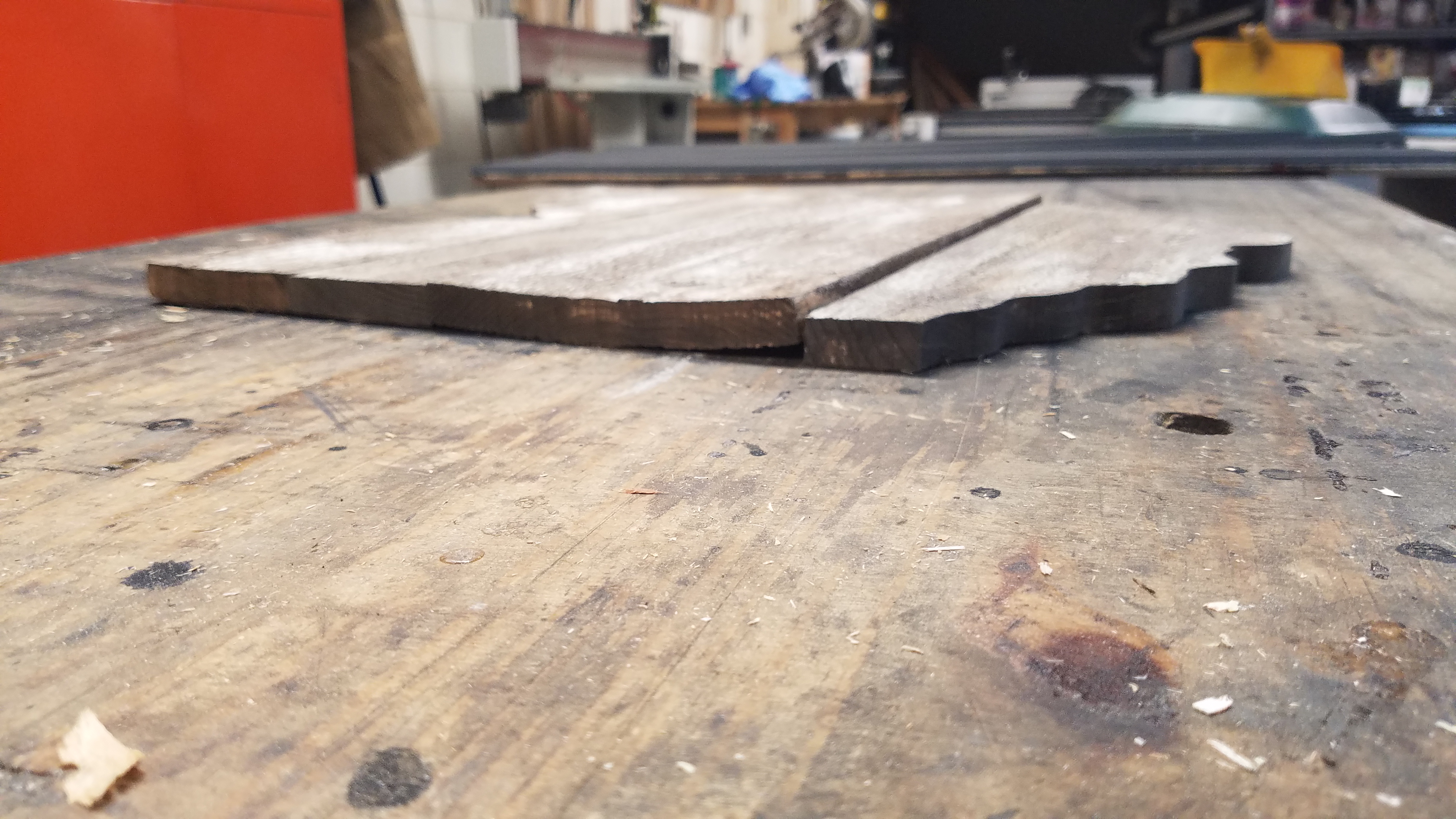

When examining the sign, I realized I made two rookie mistakes. The first mistake I made was that I painted the wrong side of the fence board. I should have fastened the wood crown-down so that the board wouldn’t warp upward. The second mistake I made was that when I fastened the boards on the plywood, I spread glue all over the plywood back making the wood unable to expand and contract. Embarrassing to admit I know. When I first made these signs, I made them from old pallet wood that was a lot narrower than the wide fence board I used here. I thought my wood was dry enough to make them in the same process, but I was sorely mistaken.

Wanting to fix the sign, I ripped apart the plywood back and removed all the staples from the wood.

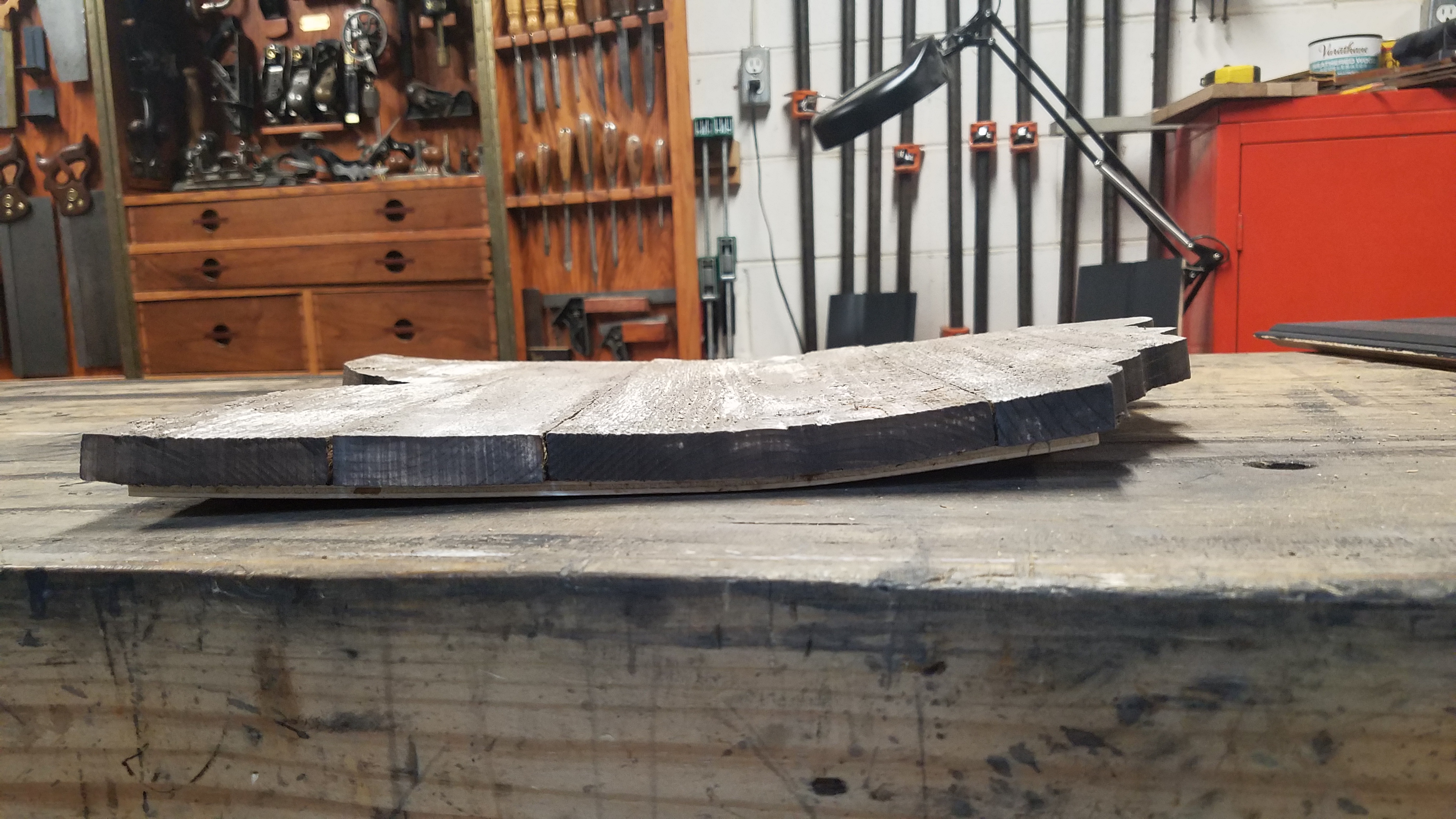

After cleaning the back of the pieces, I saw how the widest board on the sign was warping in conjunction with the others.

I decided to shave off the high spot in the middle with my scrub plane so the warping wouldn’t be as noticeable when I remade the sign.

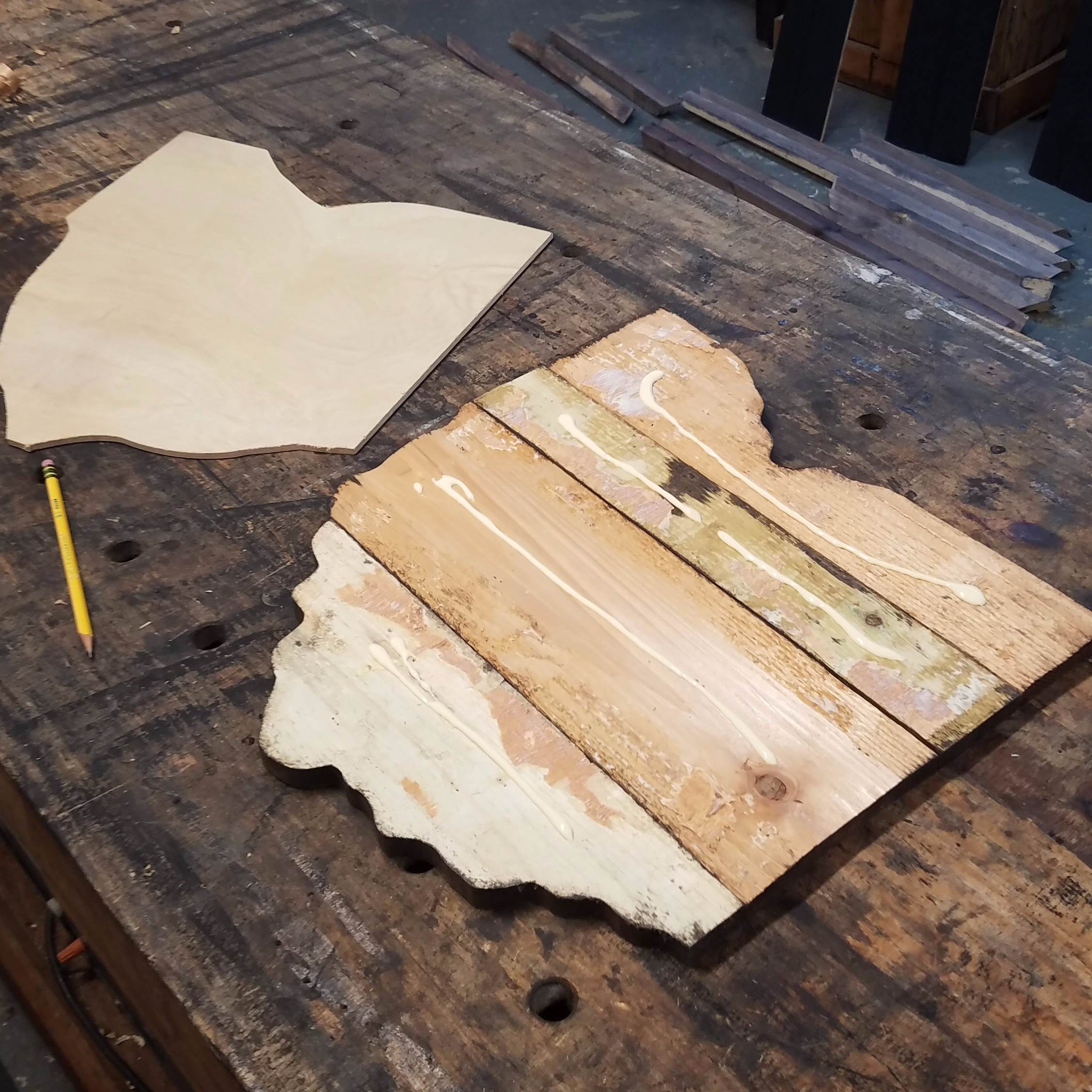

Then, instead of spreading glue all over the plywood back, I laid a bead of glue down the center of each piece of wood so the wood could move. I then attached the plywood back to the pieces with 1/4″ crown 5/8″ long staples.

With everything back together, I was happy how the sign laid flat again. I really don’t mind if the boards warp a little bit. After all, the sign is supposed to look old and rustic. I just don’t want the whole thing to curl.

Inexpensive Window Trim

On March 23, 2017March 23, 2017 By MVFlaim FurnituremakerIn Workshop6 Comments

The windows in our house aren’t much to talk about. Just 36″ square vinyl windows in a typical ranch. I’m not sure how old they are as I know they aren’t original to the house, but were here when I bought it fifteen years ago. My wife, Anita, wanted to jazz them up a bit and give them some character, so she asked me to make trim to go around them.

20170312_105920

The first thing we did, was to take out the marble sill, which was the hardest part. Sometimes they get stuck inside the frame, so I had brake them apart in order for them to come loose. If I was lucky, I could cut the sealant around the sill and jimmy it loose.

20170312_105942

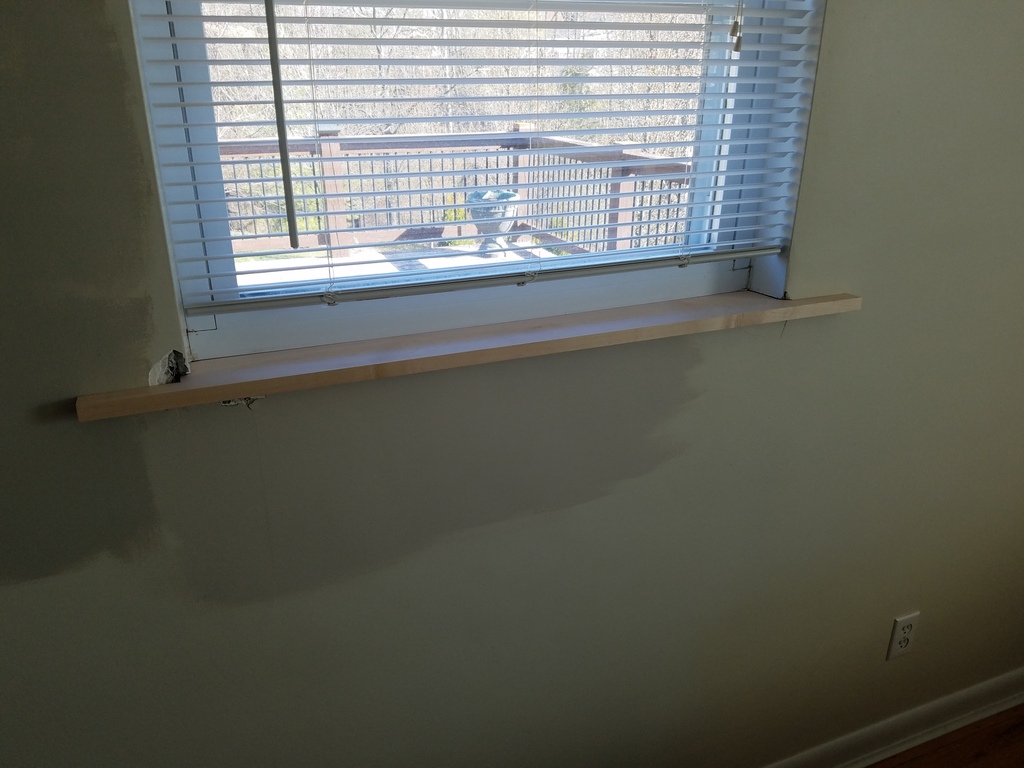

I made a new sill out of 7/8″ thick maple. I tried to get rift sawn material so it wouldn’t warp too bad. I cut notches on both sides of the sill so it would stick out on the wall so the 1×4’s could lay on top of it.

20170312_123610

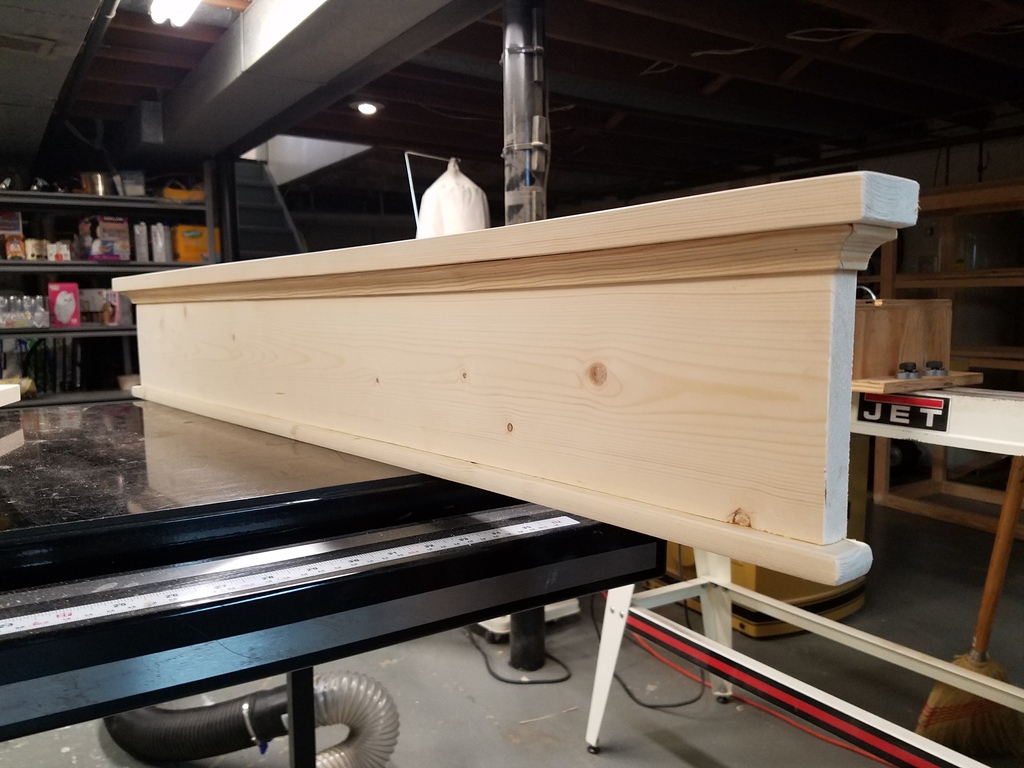

We wanted the header to have character so we took a 1×6 of pine and attached a 1×2 on the top. We then laid a cove molding on the 1×6.

20170312_1235571

Using my small miter box, I was able to cut the tiny pieces of cove for the ends.

20170318_122351

I then took a piece of pine 1/2″ thick and used my block plane to shape the corners and ends to create a bullnose. I pinned everything together with my 18 gauge pneumatic nailer to complete the header.

img_20170312_142516_891

Back at the window, I measured, cut, and nailed the rest of the pieces to the wall using a 15 gauge finish nailer. I trimmed the maple sill so that there would be a 3/4″ overhang to sides on both ends.

img_20170312_202015_986

Here’s the close up of the header nailed to the wall. The 1/2″ thick bullnose hangs over 1/2″ on both sides of the frame.

20170323_203246

After filling the nail holes with putty, Anita caulked, primed, and painted the window trim. We did both windows in our bedroom the same way. The next step is to frame around the closet, paint the room, get a new headboard, new blinds, ceiling fan, rug, etc… I don’t know, ask Anita, she’s the designer. haha

Building a Shed Part XI

On October 15, 2016October 15, 2016 By MVFlaim FurnituremakerIn Workshop14 Comments

We’ve been building this shed for over a year now. Between the cold of the winter and the heat of the summer, this has been the biggest project I have ever taken on. The past few weeks, we’ve been preparing the shed for paint.

photo IMG_20160925_104425.jpg

I sanded the body of the shed with 80 grit sand paper with my random orbital sander. This allowed me to take off the glaze from the mill when the wood was being processed.

photo 20160925_123326.jpg

The doors and corbels were sanded to 150 grit because we were planning on staining these elements. I filled the nail holes with some outdoor wood putty as I wanted the doors to have a finished look without a bunch of nails holes in them.

photo 20160925_123301.jpg

My wife, Anita, went to Ace Hardware and bought Aura paint and primer by Benjamin Moore. This paint isn’t cheap at $70 a gallon, but we wanted to make sure the shed had the best finish on it so we wouldn’t have to repaint it every other year.

photo 20160925_123338.jpg

With two coats of primer on it, we let the shed sit for a few days before we applied the top coats.

photo 20160927_161607.jpg

The body was painted with two coats of Galveston Gray.

photo IMG_20161002_134906.jpg

The shed was starting to look really nice. The top trim and the windows would be painted with Iron Mountain.

photo IMG_20161002_164602.jpg

We picked Cedar Bark stain from Sherwin Williams for the doors and corbels. The shed is nearly done, but I still need to make a trellis over the side window and build a small deck underneath the doors. Getting real close.

photo IMG_20161015_150738.jpg

Revamping Ugly Dining Chairs

On August 23, 2015August 23, 2015 By MVFlaim FurnituremakerIn Furniture, Workshop2 Comments

The remodeling of our dining room continues. This time with new chairs. My wife was never that fond of the Windsor chairs I made about twelve years ago, so she bought four french style caned back chairs at a local thrift store for $10.00 each. They were in good shape, the only issue with them was that they had an ugly ass imitation claw bubble design thing on the front legs. Honestly, I have no idea what they were suppose to be or how they made the chair look more formal, but they were ugly.

photo 20150524_110441.jpg

My wife Anita and I both agreed they had to go so I took out my low angle block plane and some files and I shaved away the bubbles on all four sides of the front legs. Since Anita was going to paint the chairs, it wasn’t a big deal that the original finish was removed exposing the bare wood.

photo 20150523_215818.jpg

After Anita painted the chairs white, I made a template for the seats with 1/4″ hard board. I simply traced around the chair with the hard board on top and cut it out on my band saw. I had to pay attention to the two notches in the back of the chair seat so that when Anita put fabric on the seat, they would still fit.

photo 20150822_171934.jpg

I didn’t have scrap 3/4″ plywood lying around in my shop, but I did have the original oak plywood top from my dining table I revamped last month. I removed some of the extra plywood around the edges where it thickened up the top and laid out my seat pattern on the board. I then used my jig saw to cut the seats out.

photo 20150822_173649.jpg

After a little fiddling, the seats fit well to the chair frames.

photo 20150822_184445.jpg

The rest of the work was in Anita’s hands. She used the seat bottom to trace around the batting for the chair and cut it using a pair of sharp scissors.

photo 20150822_184924.jpg

photo 20150823_105217.jpg

Then she started to staple the fabric on with upholstery staples. She used a Senco pneumatic stapler to make the job go much quicker.

photo 20150823_121400.jpg

Here is one of the chairs finished. I have to admit, it looks a lot better than the Windsor chairs I made a few years ago. Once she finishes all four chairs, I’ll post some pictures that show the revamped chairs along with the revamped table together as a set.

photo 20150823_123327.jpg

Updating a Hallway

On April 27, 2015April 27, 2015 By MVFlaim FurnituremakerIn Furniture2 Comments

The past few days, Anita and I have been working on finishing up the dining room and hallway. After I struggled to throw up the crown molding, attaching chair rail felt like childs play. The trickiest part was coping both ends at the end of the hallway.

photo hallway1.jpg

After the chair rail was nailed up, I attached the rectangular boxes I made with my molding planes. Then Anita caulked and painted everything white on the bottom, and a light grey on top. She bought a custom rug from Pottery Barn that fits the hallway nicely. Now she plans on hanging some pictures on the wall and get a new light fixture to spruce things up. This was a cheap and easy way to make a hallway look more elegant.

photo hallway2.jpg

Here is a close up of the faux wainscoting boxes I made. They add quite a bit of detail to the walls.

photo hallway3.jpg

Empire Wine Bar

On December 5, 2012December 5, 2012 By MVFlaim FurnituremakerIn Furniture2 Comments

A few months ago my wife bought a dresser from a local auction company. When we picked it up, we noticed that the bottom drawer was so badly damaged that is was not worth repairing. Plus the drawers were only 10″ deep which doesn’t really fit with today’s needs. So, we decided that we would turn it into a wine cabinet.

The first thing I needed to do was take out the drawers and remove the frame that held them. It was a pretty easy process as the drawer runners were simply screwed in place.

I knew the part that held the wine bottles would need a cabinet of some sort so I glued 1/4″ panels to the inside to create a box. I also had to add boards to the bottom of the cabinet to support the bottom of the interior.

After much thought about how many wine bottles I wanted the cabinet to hold, I drew numerous options of the interior. I wanted the grids to go at 45 degrees and hold the maximum amount of bottles yet fit the opening of the cabinet. At first I designed the cabinet opening to hold nothing but wine bottles but after several drawings, I finally decided to make one half hold wine bottles with 4 1/2″ openings and the other half a shelf.

I built a divider down the middle and attached it with pocket hole screws. I installed plugs in the pocket holes and sanded them flush.

The fun part was making the grids. I made them from 3/4″ poplar and custom fitted each piece inside the box. The grids are attached together with dado’s and were painted brown before they were glued in.

I kept the girds shy of the face of the cabinet so that I could glue sapele on top of the poplar. Sapele is a poor mans mahogany which is what the dresser was made from. When stained, the sapele, mahogany and the painted poplar will blend together nicely.

After the interior was done, my wife painted the outside with chalk paint. She took the time to tape off the area that is stained and applied two coats of paint. After the paint dried, she rubbed some of it off to distress it, then added a dark brown glaze over the details of the piece to get in the cracks and appear old.

I applied four coats of General Finishes Arm-R-Seal oil & urathane topcoat to the top, the front of the drawers, and the grids to give the cabinet a nice sheen. We dragged it upstairs from the basement which was a big pain in the ass as it weighs nearly 200 lbs and decorated it in our dining room.

You can see how the distressing looks. The idea is to make the cabinet look old which is exactly what it is. After the glaze dries, Anita applied a light wax over the piece to protect the paint.

The design of the inside of the cabinet came out well. The grids hold eight bottles of wine and all of our various glasses. So far one of the drawers stores our wine bottle opener. Unfortunately, the other drawer will probably end up as a junk drawer.

The Empire dresser spent its first 150 years as a dresser. Now it will spend the next 150 years as a wine cabinet. Not a bad 300 year life if you ask me.
